- Features and benefits

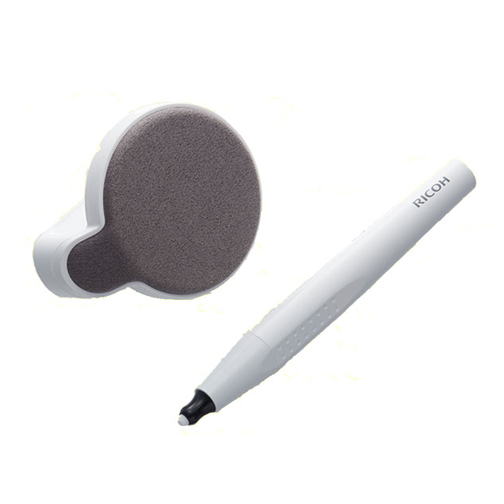

It is easy to annotate presentations. The ergonomically shaped pen is perfectly weighted, and with ShadowSense™ technology, the fine detailing is second to none. The D8600 also supports videoconferencing (option) and can be linked seamlessly to other whiteboards, tablets and smartphones, enabling remote participants to share information and collaborate on documents in real time.
- Engage, enlighten and enthuse larger audiences
- Sophisticated design and streamlined profile
- 4K display and shadow sensing for more accurate imaging
- Fast start and intuitive operation improve professionalism
- Seamlessly connect whiteboards, tablets and smartphones
GENERAL Interface: input (video) VGA, HDMI, DVI-D, Display port, D-sub15 (Computer IN) Interface: input (audio) Line 3.5 Interface: output (video) Display port Interface: output (audio) Speaker Out Interface (others) USB 2.0 (type A) x 4, RS-232-C, USB 3.0 (type A) x 4 Dimensions: W x D x H (mm) 2,009 x 125 x 1,200 Weight (kg) Mainframe: 122, Full configuration: 124 Power source 100 - 240 V, 50/60 Hz DISPLAY PANEL Panel size: diagonal (" wide) 85.6 Backlight LED system Effective area: W x H (mm) 1,895.04 x 1,065.96 Resolution: maximum (Full HD) 3,840 x 2,160 Colours: maximum 1,070,000,000 Brightness: maximum (cd/m²) 410 Aspect ratio 16 : 9 Contrast ratio 1,200 : 1 Pixel pitch (mm) 0.4935 x 0.4935 Response: grey to grey (ms) 8 Viewing angle: H/V (°) 178/178 TOUCH SYSTEM Touch point: display only (point) 10 Accuracy (mm in touchable area) 2 Touch output USB 3.0 (type B) Multi touch Windows 7 Home Premium, Windows 7 Ultimate, Windows 7 Professional, Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows 10 Enterprise, Windows Embedded 7 Standard Single touch Windows 7 Home Basic, Mac OS X 10.8 - Mac OS X 10.13 Protection glass thickness: including AR coating (mm) 4 ECOLOGY Sound power level: full system (dB) 35 Power consumption: maximum (W) 510 Power consumption: standby mode (W) 0.5 Operating temperature (°C) 0 - 32 Operating humidity (%) 10 - 80
