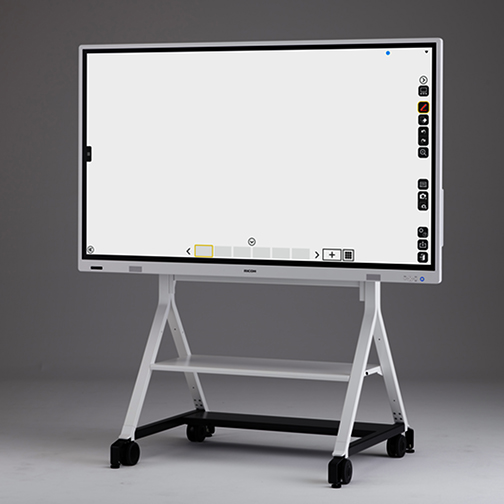

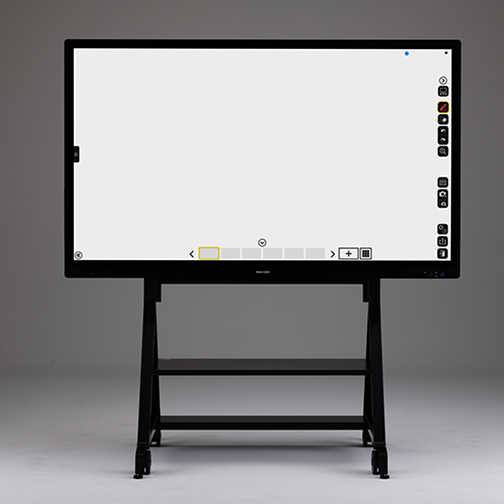

Transform your meetings and turn presentations into constructive experiences with the RICOH Collaboration Board D7510. This all-in-one collaboration hub lets the whole team actively participate in meetings, brainstorms and presentations.

The D7510 comes with embedded built-in speakers ready to be connected with any video conference end point. It lets teams share and annotate documents and browse the web together in real time. With a 75-inch touchscreen and vivid 4k Ultra HD resolution, the D7510 is ideal for medium-large conference rooms and seminar rooms.

Features and benefits

The RICOH Collaboration Board D7510 is a one-stop collaboration powerhouse. The 75-inch screen provides ample space for presenting and sharing ideas across the team. And it uses shadow sensing technology that enables precise document annotation. Now you can browse the web and securely share and mark up files, easily keeping the team aligned whether they’re in the room or across the world.

  • One-stop collaboration hub with precise document annotation capabilities
  • 4K display bringing high quality and detailed images
  • Front positioned speakers for a better sound quality
  • Sophisticated exterior design black or white up to 30% less heavy than predecessor displays, anti-glare anti-fingerprint coating, slimmer body and thinner frames fit to any type of office
  • Intuitive UI/UX with motion detection to attract people attention and save your steps to start a meeting
  • Video conference-ready with built-in speakers
  • InGlass™ by FlatFrog and Optical Bonding technologies realizing smaller parallax & accurate pen response for a greater writing experience
  • Compatible with Pexip, Skype for Business, Microsoft Teams and Zoom
  • Designed for ease of use with a choice between a RICOH or an OS free controller, allowing you to work the way that suits you best
  • Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
  • Adding RICOH Streamline NX enables secure card-based device access and allows you to email and print anything produced on the whiteboard
  • Dust- resistant function ideal for construction sites and factories
  • DICOM SIM projection mode for medical training

Interface (input) - Video VGA, HDMI, DisplayPort™
Interface (input) - Audio Line 3.5 mm
Interface (output) - Video DisplayPort™
Interface (output) - Audio Speaker-out
Interface (output) - Control USB3.0 Type B
Enhanced features Text OCR, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function
Built-in speaker 12 W x 2
Dimensions (W x D x H) 1,733 x 79 x 1,045 mm
Weight - Mainframe 59 kg
Weight - Full configuration 61 kg
Power source 100 - 240 V, 50/60 Hz
Control RS-232C(PC-control)
Motion detection sensor Yes
Dust resistant function IP5X equivalent
Power consumption - Maximum 500 W
Power consumption - Stand-by mode 0.3 W
Operating temperature 0°C - 32°C
Operating humidity 10% - 80%
Storage conditions - Humidity 15% - 80%
Panel size - Diagonal 75" wide ( mm)
Backlight DLED system
Effective display area (W x H) 1,650.24 x 928.26 mm
Resolution - Maximum 3,840 x 2,160 dot
Colour - Maximum Over 1,070,000,000 colours
Brightness - Maximum 440 cd/m²
Aspect ratio 16 : 9
Contrast ratio 4,000 : 1
Pixel pitch 0.429 x 0.429 mm
Response speed 8 ms (Grey to Grey, Ave.)
Viewing angle (H/V) 178°/178° (Contrast ratio >= )
Cover glass - Thickness 2mm
Cover glass - Anti-glare AG pre-treated, AF (Anti-fingerprint)
Display orientation Landscape
Touch technology InGlass™, Optical bonding
Touch point 20 point (display only)
Touch resolution 19,353 x 10,886
Accuracy +/- 1.2 mm in touchable area
Touch pen request >= 2 mm
Touch output USB 3.0 (type B)
OS - Multi touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard, Windows 10 Enterprise
OS - Single touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 7 P, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 Enterprise, Windows 10 IoT, Mac OS X 10.8 - Mac OS X 10.15

Related software & apps

  • RICC

    RICC - Ricoh Creative Collaboration

    RICC Collaboration Software covers all meeting needs in a single application suite.

  • Reactiv SUITE

    Reactiv SUITE

    Reactiv SUITE simplifies mundane tasks involved with collaboration like inking, marking up, tracking changes, and archiving.
