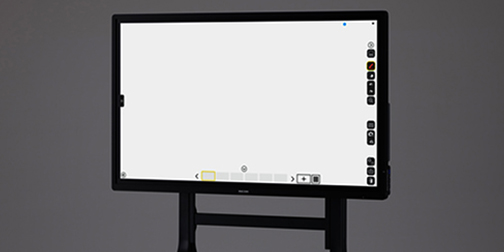

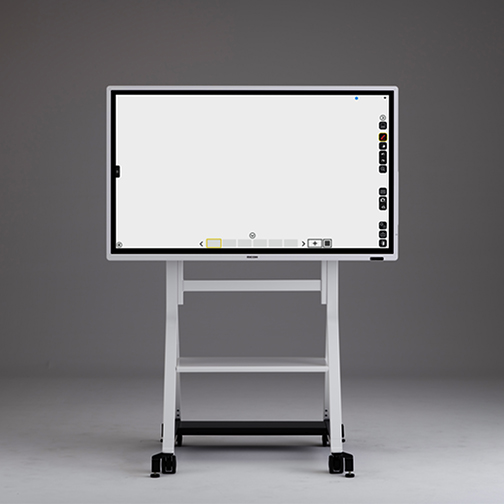

The RICOH Collaboration Board D5530 gives you the tools you need to quickly get together and start a meeting.

This high-resolution collaboration hub makes it easy for the whole team to join from anywhere and promote constructive discussions.

The device comes with powerful integrated speakers and ready to be connected with any kind of external camera or video conference end point. Now team members can share files and annotate documents in real time. With its 4K 55-inch touchscreen, the D5530 is ideal for huddle rooms and meeting corners of about 4-6 people.

Features and benefits

The RICOH Collaboration Board D5530 is an all-in-one collaboration hub. The 4K 55-inch screen gives the team plenty of space to share their ideas, and it uses shadow sensing technology that enables precise document annotation. This whiteboard lets you easily and securely share files, and you can browse the web straight from the display. Sophisticated exterior design black or white up to 30% less heavy than predecessor displays, anti-glare anti-fingerprint coating, slimmer body and thinner frames fit to any type of office.

  • One-stop collaboration hub with precise document annotation capabilities
  • 4K display bringing high quality and detailed images
  • InGlass™ by FlatFrog and Optical Bonding technologies realizing smaller parallax & accurate pen response for a greater writing experience
  • Intuitive UI/UX with motion detection to attract people attention and save your steps to start a meeting

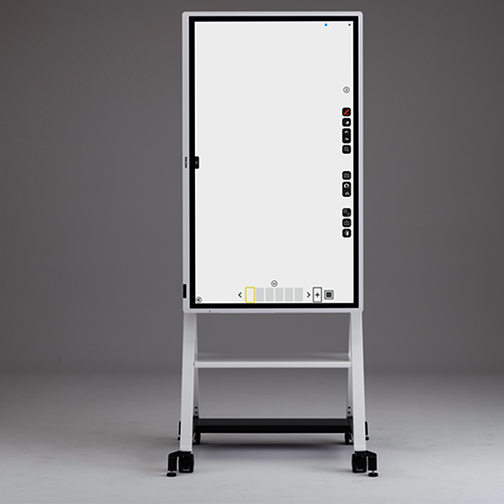

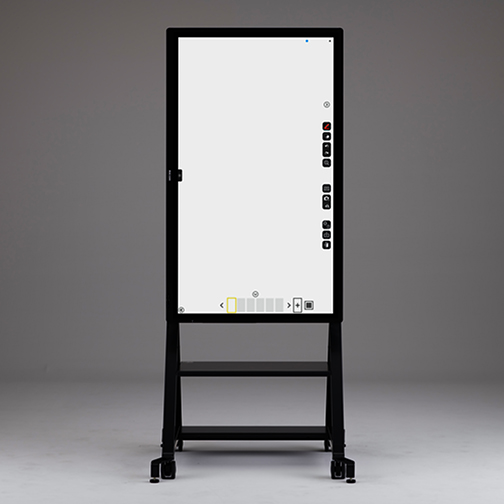

  • Landscape and Portrait orientation
  • Video conference-ready with built-in speakers
  • Compatible with Pexip, Skype for Business, Microsoft Teams and Zoom
  • Designed for ease of use with a choice between a RICOH or an OS free controller, allowing you to work the way that suits you best
  • Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
  • Dust- resistant function ideal for construction sites and factories
  • DICOM SIM projection mode for medical training

Interface (input) - Video VGA, HDMI, DisplayPort™
Interface (input) - Audio Line 3.5 mm
Interface (output) - Video DisplayPort™
Interface (output) - Audio Speaker-out
Interface (output) - Control USB3.0 Type B
Enhanced features Text OCR, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function
Built-in speaker 12 W x 2
Dimensions (W x D x H) 1,290 x 78 x 773 mm
Weight - Mainframe 35 kg
Weight - Full configuration 37 kg
Power source 100 - 240 V, 50/60 Hz
Control RS-232C(PC-control)
Motion detection sensor Yes
Dust resistant function IP5X equivalent
Power consumption - Maximum Less than 350 kW
Power consumption - Stand-by mode 0.3 W
Operating temperature 0°C - 32°C
Operating humidity 10% - 80%
Altitude limitation 2,500 m (8,202 ft)
Storage conditions 15% - 80%
Panel size - Diagonal 55" wide ( mm)
Backlight DLED system
Effective display area (W x H) 1,209.6 x 680.4 mm
Resolution - Maximum 3,840 x 2,160(4K)
Colour - Maximum Over 10,700,000 colours
Brightness - Maximum 440 cd/m²
Aspect ratio 16 : 9
Contrast ratio 4,000 : 1
Pixel pitch 0.315 x 0.315 mm
Response speed 8 ms (Grey to Grey, Ave.)
Viewing angle (H/V) 178°/178° (Contrast ratio >= )
Cover glass - Thickness 2mm
Cover glass - Anti-glare AG pre-treated, AF (Anti-fingerprint)
Display orientation Landscape, Portrait
Touch technology InGlass™, Optical bonding
Touch point 20 point (display only)
Touch resolution 19,353 x 10,886
Touch pen request >= 2 mm
Touch output USB 3.0 (type B)
Multi touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard, Windows 10 Enterprise
Single touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 7 P, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 Enterprise, Windows 10 IoT, Mac OS X 10.8 - Mac OS X 10.15

Related software & apps

  • RICC

    RICC - Ricoh Creative Collaboration

    RICC Collaboration Software covers all meeting needs in a single application suite.

  • Reactiv SUITE

    Reactiv SUITE

    Reactiv SUITE simplifies mundane tasks involved with collaboration like inking, marking up, tracking changes, and archiving.
