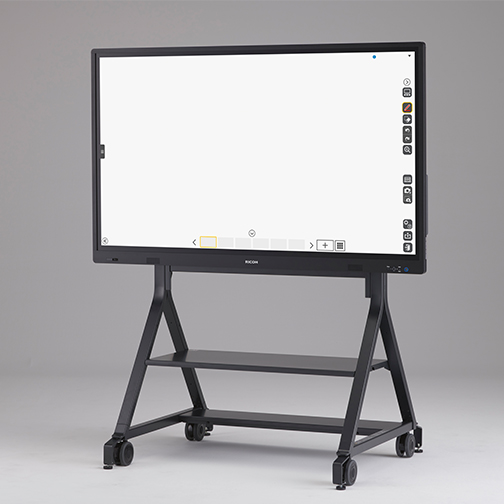

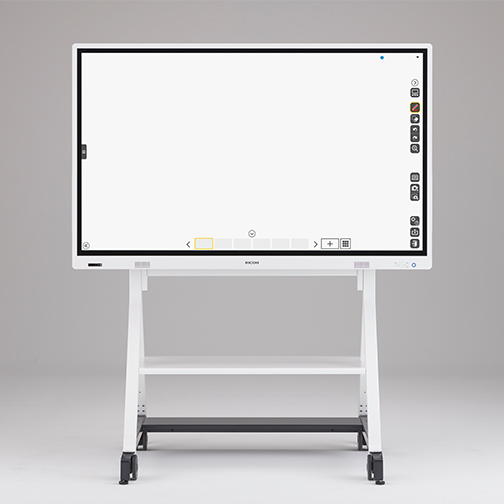

The RICOH Collaboration Board D6520 is here to transform the way you collaborate - Paperless, cableless, and preparation-free. This high-resolution collaboration hub gives your teams all the tools they need to bring the team together and promote constructive discussions.

The D6520 promotes effective teamwork with real time remote document sharing and precise on-screen annotation. The device comes with powerful integrated speakers and ready to be connected with any kind of external camera or video conference end point. With its 4K 65-inch touchscreen, the D6520 is suitable for medium-sized conference rooms and ordinary classrooms with 6-15 people.

Features and benefits

The RICOH Collaboration Board D6520 transforms everyday meetings into highly productive working sessions. The 4K 65-inch screen gives you all the space you need to share ideas, and it uses InGlass™ by FlatFrog and Optical Bonding technologies realizing smaller parallax & accurate pen response for a greater writing experience. And you can easily make sure the whole team is on the same page with real-time document sharing and web browsing straight from the whiteboard.

  • Designed to be installed without changing the existing layout of meeting rooms and classrooms
  • Reflection prevention function, to see the contents without adjusting the lighting.
  • Connection to the devices necessary for remote meetings by simple operation and without software
  • Connection to a wireless presentation device without passing cables
  • 4K display bringing high quality and detailed images
  • Front positioned speakers for a better sound quality
  • Sophisticated exterior design black or white up to 30% less heavy than predecessor displays, anti-glare anti-fingerprint coating, slimmer body and thinner frames fit to any type of office
  • Intuitive UI/UX with motion detection to attract people attention and save your steps to start a meeting
  • Video conference-ready with built-in speakers
  • Compatible with Pexip, Skype for Business, Microsoft Teams and Zoom
  • Designed for ease of use with a choice between a RICOH or an OS free controller, allowing you to work the way that suits you best
  • Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
  • Adding RICOH Streamline NX enables secure card-based device access and allows you to email and print anything produced on the whiteboard
  • Dust- resistant function ideal for construction sites and factories
  • DICOM SIM projection mode for medical training

Interface (input) - Video VGA, HDMI, DisplayPort™
Interface (input) - Audio Line 3.5 mm
Interface (output) - Video DisplayPort™
Interface (output) - Audio Speaker-out
Interface (output) - Control USB3.0 Type B
Enhanced features Text OCR, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function
Built-in speaker 12 W x 2
Dimensions (W x D x H) 1,508 x 83 x 920 mm
Weight - Mainframe 45 kg
Weight - Full configuration 47 kg
Power source 100 - 240 V, 50/60 Hz
Control RS-232C(PC-control)
Motion detection sensor Yes
Dust resistant function IP5X equivalent
Power consumption - Maximum 380 W
Power consumption - Stand-by mode 0.3 W
Operating temperature 0°C - 32°C
Operating humidity 10% - 80%
Altitude limitation 2,500 m (8,202 ft)
Storage conditions - Humidity 15% - 80%
Panel size - Diagonal 65" wide ( mm)
Backlight DLED system
Effective display area (W x H) 1,428.48 x 803.52 mm
Resolution - Maximum 3,840 x 2,160(4K)
Colour - Maximum Over 1,070,000,000 colours
Brightness - Maximum 440 cd/m²
Aspect ratio 16 : 9
Contrast ratio 5,000 : 1
Pixel pitch 0.372 x 0.372 mm
Response speed 8 ms (Grey to Grey, Ave.)
Viewing angle (H/V) 178°/178° (Contrast ratio >= )
Cover glass - Thickness 2mm
Cover glass - Anti-glare AG pre-treated, AF (Anti-fingerprint)
Display orientation Landscape
Touch technology InGlass™, Optical bonding
Touch point 20 point (display only)
Touch resolution 19,353 x 10,886
Accuracy +/- 1.2 mm in touchable area
Touch pen request >= 2 mm
Touch output USB 3.0 (type B)
OS - Multi touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard, Windows 10 Enterprise
OS - Single touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 7 P, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 Enterprise, Windows 10 IoT, Mac OS X 10.8 - Mac OS X 10.15

Related software & apps

  • RICC

    RICC - Ricoh Creative Collaboration

    RICC Collaboration Software covers all meeting needs in a single application suite.

  • Reactiv SUITE

    Reactiv SUITE

    Reactiv SUITE simplifies mundane tasks involved with collaboration like inking, marking up, tracking changes, and archiving.
