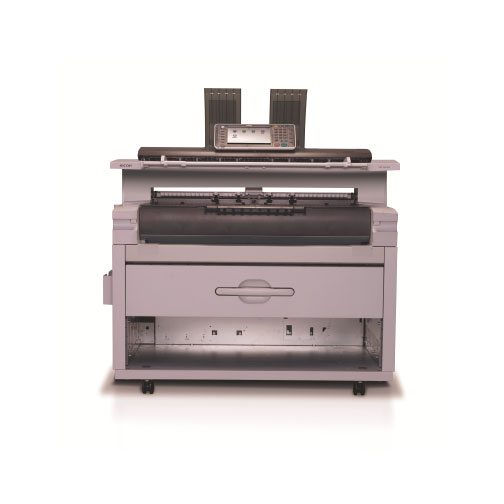

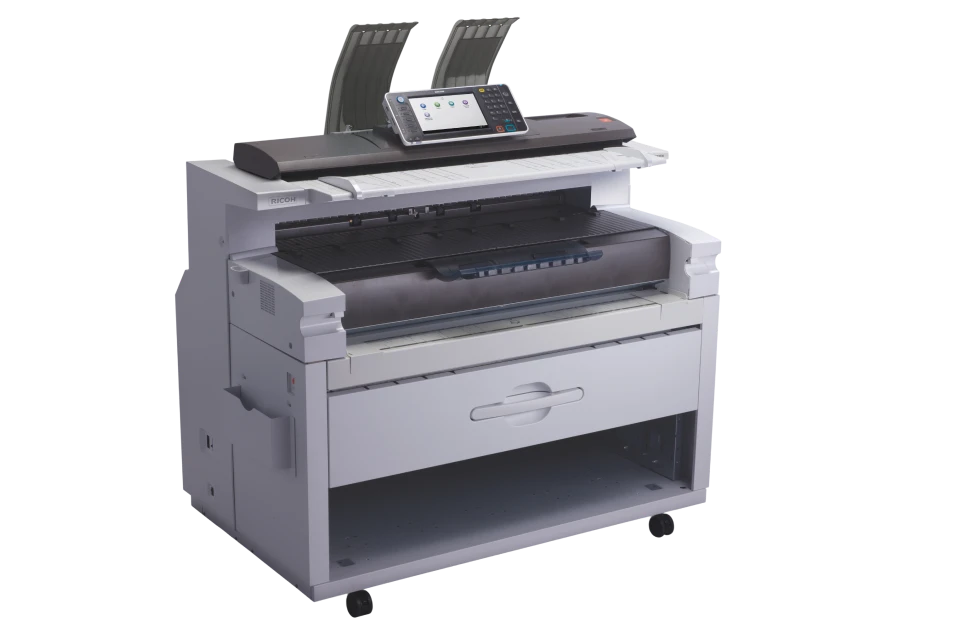

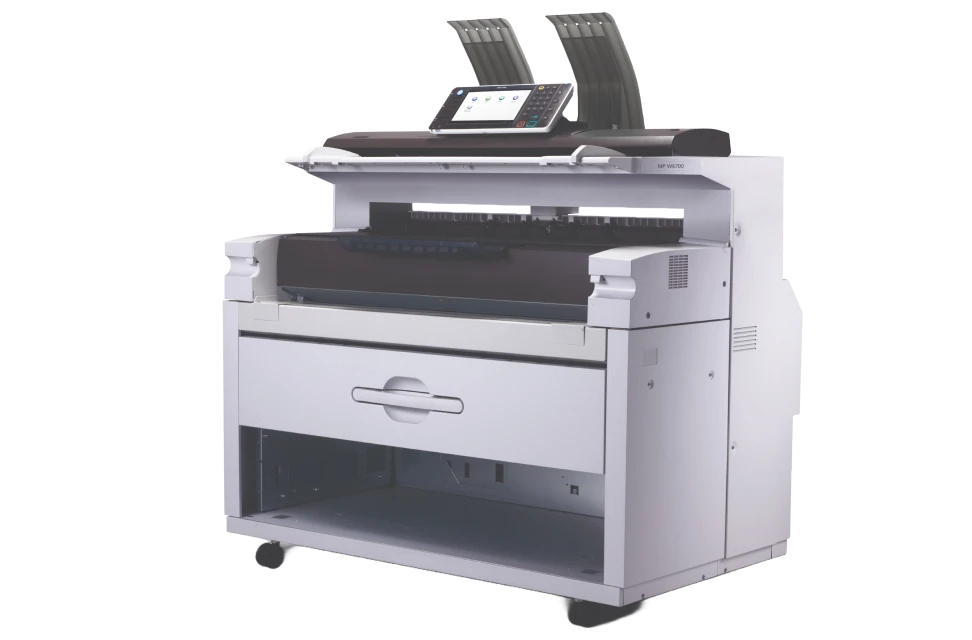

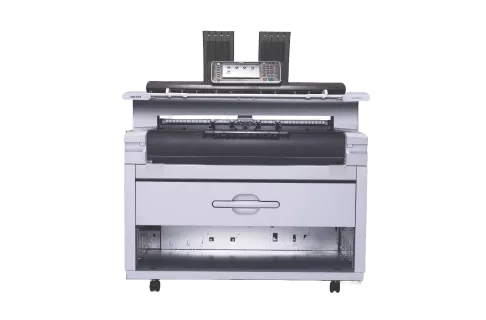

MP W6700SP

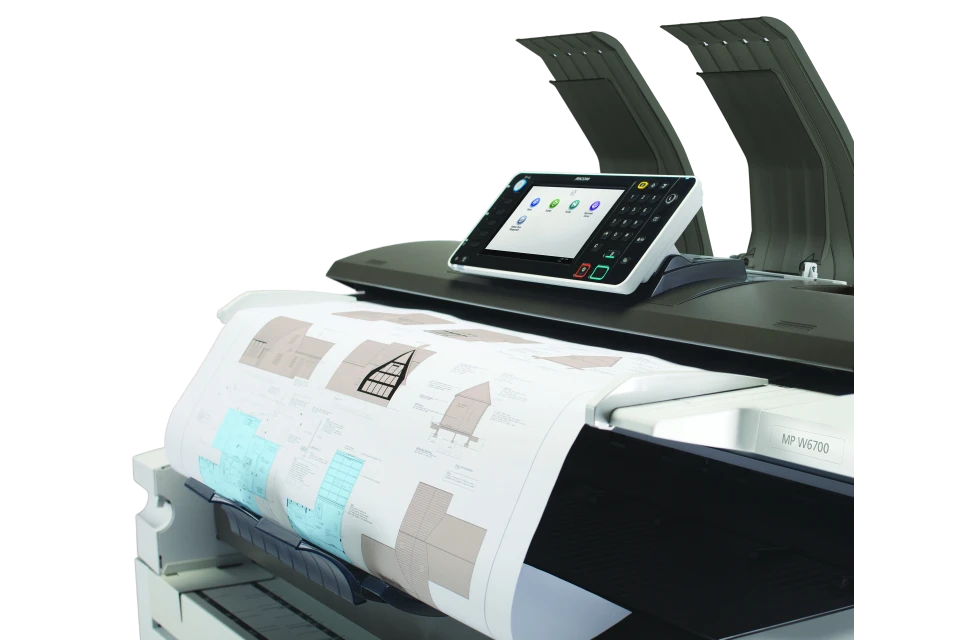

The ultimate light mono printer for low and mid-range users. Want high-speed output, high resolution and high reliability? Then this new digital multi-function monochrome printer has been created for you. The one device enables you to print, copy and scan in colour. You can also archive to improve document security and storage plus quickly and easily retrieve archived documents.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Features and benefits
-
- High productivity - High-speed monochrome printing at 6.7 pages/minute (A1 horizontal)
- Colour Scanner - A real scan-to solution

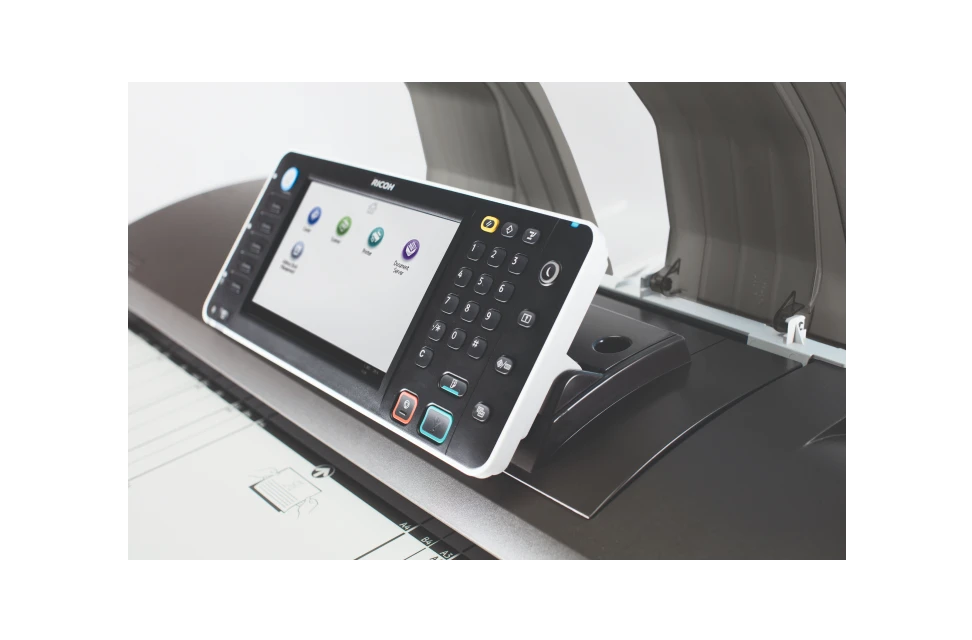

- Improved ease of use - Thanks to the new colour wide VGA LCD panel it is easy to configure workflows and set up one-touch shortcuts.
- The smallest footprint - Compact in design and operation
- Specifications
-

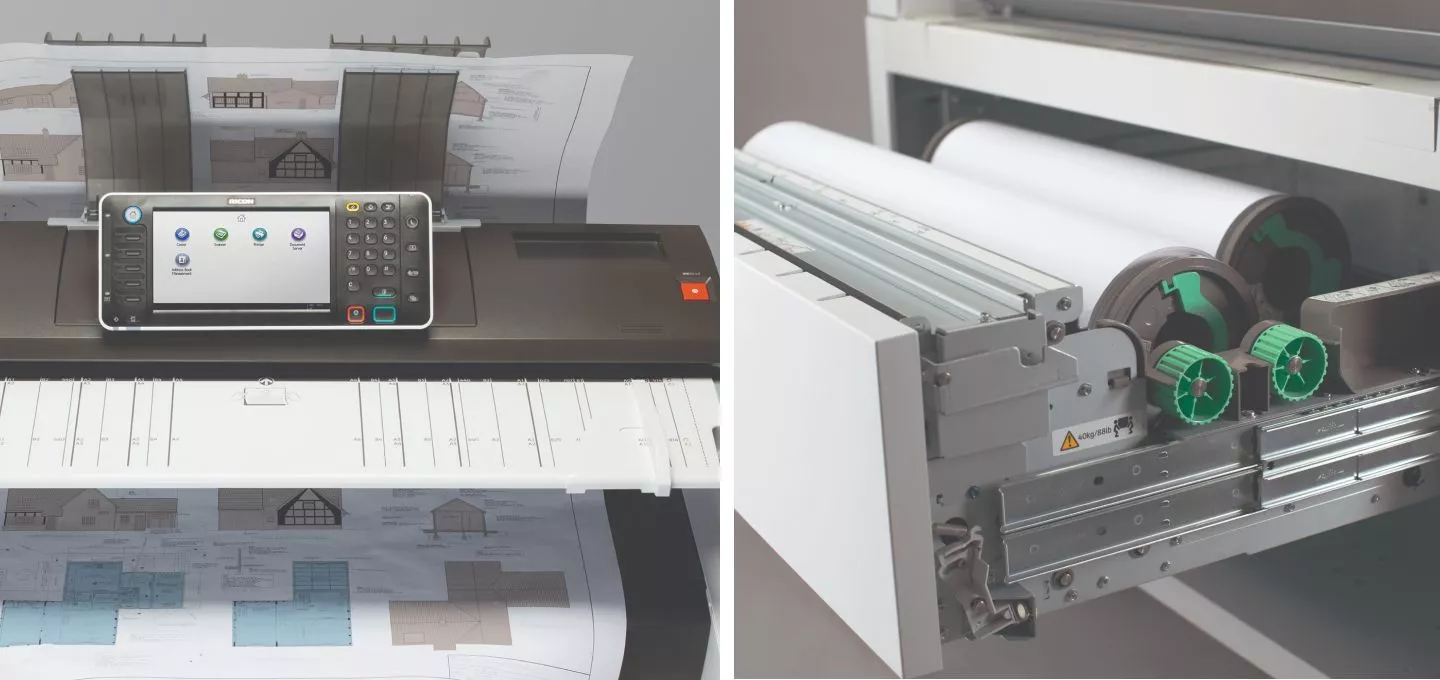

GENERAL Configuration Console Copying/printing process Electro-photographic printing Paper source: standard 2 Roll paper feeder Resolution 600 x 600 dpi Grayscale printing 2 levels Zoom 25% to 400% by 0.1% increments Cutting method Preset size cut, Synchronised cut, Variable cut Hard Disk Drive 320 GB Power source 120 - 200 V, 20 A (max.), 60/ Hz Dimensions (W x D x H) 1,250 x 755 x 1,215 mm, 49.2 x 29.7 x 47.8" Weight 230 kg, 507 lbs. COPIER First copy time from standby mode D-size: 19 seconds Copying speed D-size: 6.7 ppm Copy modes Text, Text/Photo, Photo, Drawing, Generation Text, Generation Photo, Pasted Original, Background Line, Highlighter Copier features Auto Paper Selection (APS), Auto Reduce/Enlargement, User Auto Reduce/Enlargement, Preset Reduce/Enlargement, Zoom, Size Magnification, Directional Size Magnification (percentage and mm/inch), Fine Magnification, Image Overlay, Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Image Shift - Front/Rear/Left/Right (0 to +/- 200 mm by 1 steps), Preset Stamps, User Preset Stamps, Date Stamp, Page Stamp PRINTER Controller board Embedded CPU 1.06 GHz Print speed 6.7 ppm D-size LEF, 3.3 ppm E-size SEF Print resolution Up to 600 dpi Print drivers Adobe Postscript, HDI Supported file formats HP-GL, HP-GL2, HP-RTL, TIFF, CALS, JPEG, PostScript, PDF, Microsoft Office, DWG/DWF Fonts European 136 fonts (PS3) Network interface: standard 100 base-TX/10 base-T Ethernet Network interface: optional Wireless LAN IEEE 802.11a/b/g/n Network protocol: standard TCP/IP (IPv4, IPv6) Supported OS Windows® XP/Vista/7/8/8.1/2003 Server/2008 Server/2008R2 Server/2012 Server/2012R2 Server, Mac® OS (10.7 or later) Printer features Sample Print, Auto Paper Select, Pen Setting, Media Selection, Stamp Setting, Roll Select, Language Setting, Set-up Launcher, Online Help Menu, Multiple Print Sets, Combine Images, Locked Print Document Server, Remote Print via Internet, Magnification, Mirror Setting, Border Setting, Set X and Y Axis, Transparency Mode, Delete After Printing, Engine Status Monitor, Encryption, PDF Batch Print Supported languages English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish SCANNER Color scan Standard Scan to multimedia Standard Media to print Print from USB/SD (JPEG/TIFF/PDF) Scan speed: colour 26.7 mm/s or 1.05 ips (600 dpi) Scan speed: B/W 80 mm/s (600 dpi) Scan resolution 600 - 600 dpi, TWAIN: up to 1,200 dpi Scan modes: colour Text/Photo, Photo Scan modes: B/W Text, Text/Photo, Text/Line Art (default), Photo, Drawing, Text/Drawing, Grayscale Scan detection Auto Detect, Preset Paper Size, Custom Size RGB support Standard Scan protocols - Network TCP/IP Scan protocols - Scan to email SMTP, POP before SMTP Scan protocols - Scan to folder SMB, FTP, NCP Image density 9 levels of lighter to darker Edit Erase Border, Positive/Negative, Mirror Image Scanner features Scan-to-Email (SMTP), Scan-to-Folder (SMB, FTP), Scan-to-URL, Scan-to-USB/SD, Network TWAIN, Scan-to-NCP, Scan-to-Document Server Preview Full view: 18 x 24", Section preview: 36 x 48" File formats Multi page TIFF, Single page TIFF, Multi page PDF, Single page PDF, Single page JPEG, High Compression PDF, PDF/A PAPER HANDLING Original paper weight 14 - 28 lbs Output paper weight 52.3 - 110 g/m² (Paper Roll) Maximum thickness 1 mm, 0.04" ECOLOGY Maximum power consumption 1.44 kW per hour
Related software & apps
-
TotalFlow PrintCopy Tool
TotalFlow Print Tool helps you efficiently print large quantities of drawings and documents, while Copy Tool links wide-format multifunction printers with a colour plotter for colour copying.
Related products
-

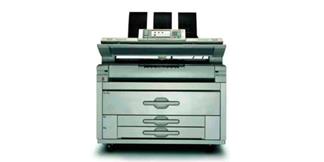

MP W7100SP
