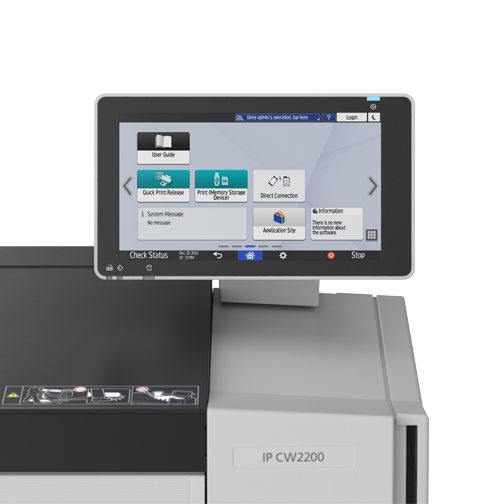

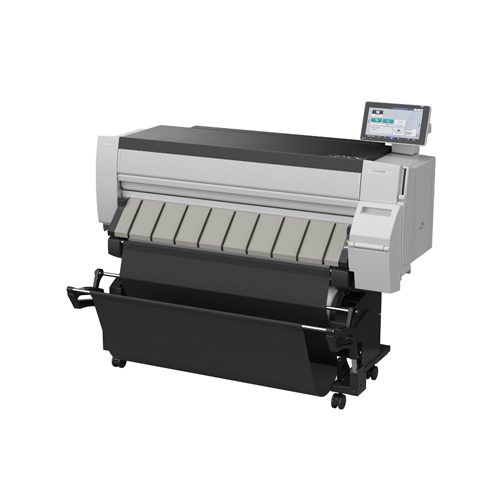

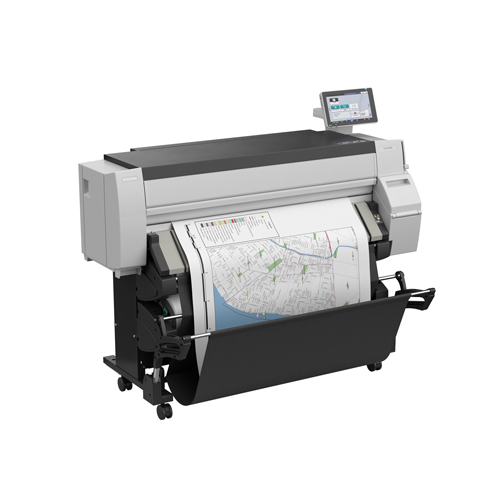

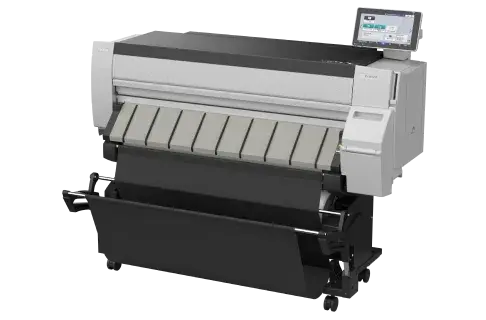

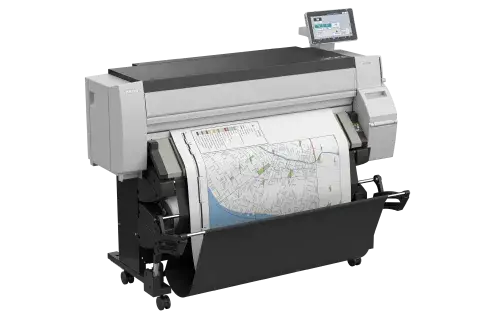

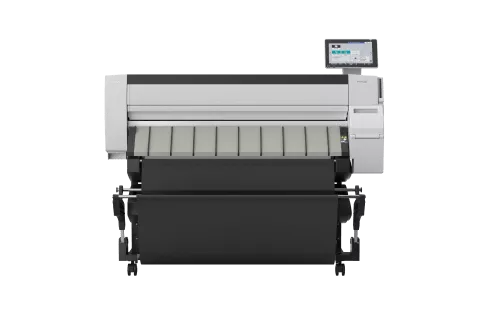

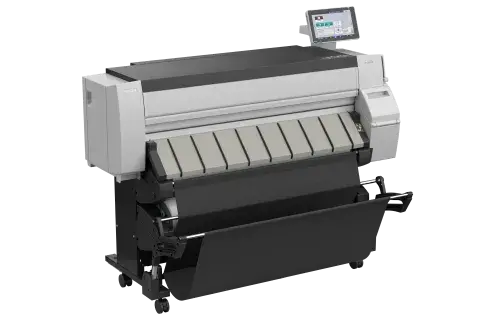

Designed for quick and easy printing of CAD drawings, construction or architect plans, large posters and other wide format documents, the RICOH IP CW2200 delivers precision and quality results at impressive high speeds. With intuitive features such as the newly designed touch screen, providing simple and easy to use operating instructions to reduce downtime, and durable colour consistency, as well as RICOH's advanced GEL-JET waterproof ink technology, this is a printer your team can rely on, whether they're working in the office, on site or outdoors.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Colour printing
- B&W printing
- 3.8 PPM
- Features and benefits
Easy to use large format printerEnhance your productivity with RICOH's IP CW2200 wide format printer:
- High print speeds up to 3.8 ppm at A1 for mono documents
- Automatic paper roll setting - no need to hand feed the paper
- Impressive continuous printing - print documents up to 33 metres long
- Usefull flat top ofering workable surface
GENERAL Configuration Console Copying/printing process On-demand Piezo inkjet system (pigment-based ink) Resolution 600 x 600 dpi Memory capacity 4 GB Hard Disk Drive 320 GB Power source 220 - 240 V, 1.9 A (max.), 50/60 Hz Dimensions (W x D x H) 1,384 x 660 x 1,117 mm Weight 100 kg PRINTER Controller board Embedded CPU 1.6 GHz Print speed A1 LEF: B/W: 3.8 ppm, Colour: 2.1 ppm, A0 SEF: B/W: 1.9 ppm, Colour: 1.1 ppm Print resolution Speed priority (drawing): 600 x 300 dpi, Speed priority: 600 x 300 dpi, Standard: 600 x 600 dpi, Quality priority: 600 x 600 dpi, Quality priority mode for only coated paper, film (matted) and special paper: 1,200 x 1,200 dpi Print drivers Adobe Postscript Fonts European 136 fonts (PS3) Network interface: standard 10/100/1000 base-TX, USB 2.0 Network interface: optional Wireless LAN IEEE 802.11a/b/g/n Network protocol: standard TCP/IP (IPv4, IPv6) Standard MIB MIB-II (RFC1213), Host Resource (RFC1514), Printer MIB (RFC1759) Private MIB Original Supported OS Windows 8.1/10 (32/64bit), Windows 11, Server 2012/R2, Server 2016/2019/2022, MacOS 10.14 or later , Citrix XenApp 7.15 LTSR, VirtualApps/Desktops 2012 or later, OES 1.0, 2.0 Media to print Yes (JPEG/TIFF/PDF) Printer features Sample Print, Locked Print, Hold Print, Stored Print, Store and Print, Unauthorized Copy Prevention, One Direction, WSD Printer, Color Matching, POP, CUD, Media to Print (JPEG/TIFF/PDF), PDF Direct Print, Ink save mode (save ratio: %), Encrypted Secure Print, Auto Job Promotion, Bonjour Support, Media Direct Print, Barrier-free Color Management Mode, Scheduled Print, Banner Page Print, System Reset Timer, Classification Mode, Emergency Print, Standard MIB, Private MIB, Black Over Print, Tray-Parameter Change from WebImageMonitor, Poster Print PAPER HANDLING Output paper size Maximum Roll Feeder: 914.4 mm width, 33,000 mm length, Maximum bypass: 914.4 mm width, 2,000 mm length Output paper weight Roll Paper: 0.068 - 0.2 mm (51 -190 g/m²), Cut Sheet: 0.068 - 0.4 mm (51 -220 g/m²) Roll paper width 297 / 364 / 420 / 440 / 490 / 515 / 594 / 610 / 620 / 625 / 660 / 680 / 707 / 728 / 800 / 841 / 880 / 914.4 mm Paper feeding capacity Width: 297 - 914 mm, 11" - 36", Bypass: 1 sheet Paper output capacity 1 sheet(s) (plain paper) ECOLOGY Maximum power consumption 160 W
