IM 550F

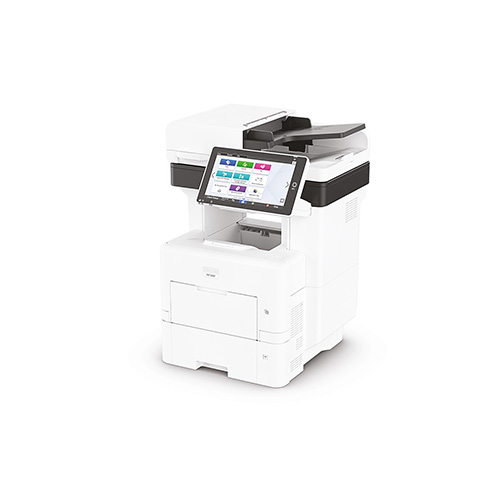

Intelligent, productive and reliable, this compact A4 MFP effortlessly keeps pace with changing business needs. The IM 550F can print, copy, scan and fax. It also connects seamlessly to the Cloud. Its super-sized 10.1 inch Smart Operation Panel simplifies operation and plays host to intuitive Smart apps, such as ID Card Copy, which automate time-consuming document processes. And, with Ricoh Smart Integration, new applications can be installed as business requirements change.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- B&W printing
- Fax
- A4
- Scanning
- Copier
- 55 PPM
- Features and benefits
-
To save time, double sided originals can be scanned in a single pass and uploaded directly to DropBox™ or Sharepoint™. And, driving your business forward, the IM 550F powers through demanding print requirements. The first immaculate 1,200 dpi print is ready in just 6 seconds and multipage documents are produced at a blistering 55 ppm. What is more, with up to 2,600 sheets of paper on line and a long-life imaging drum providing reliable maintenance-free performance, there is seldom need to stop.
- Effortless 55 ppm, 1,200 dpi print performance
- High capacity Single Pass Document Feeder (SPDF)
- 2,600-sheet, 5-tray auto-switching paper supply (option)

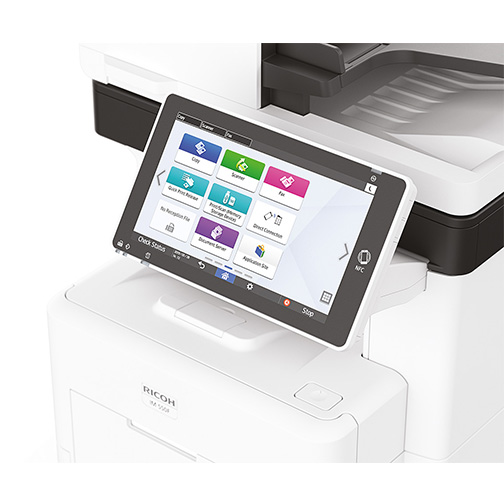

- Super-sized 10.1 inch Smart Operation Panel
- RICOH Always Current Technology keeps the device up to date
- Web help and RemoteConnect reduce downtime
- Maintenance free for first 500,000 prints
- Specifications
-
GENERAL Warm-up time 25.4 seconds First output speed: B/W 2.4 seconds Continuous output speed 55 ppm Memory: standard 2 GB Memory: maximum 2 GB HDD: standard 320 GB Weight 29 kg Dimensions: W x D x H 480 x 539 x 644 mm Power source 220 - 240 V, 50 - 60 Hz COPIER Multiple copying Up to 999 copies Resolution 600 x 600 dpi Enlargement/reduction 50 - 200% Zoom From 25% to 400% in 1% steps PRINTER CPU Intel® Apollo Lake Processor 1.3 GHz Printer language: standard PCL5e, PCL6(XL), PostScript 3 (emulation), PDF direct (emulation) Printer language: option Genuine Adobe® PostScript®3™ Print resolution: maximum 1,200 x 1,200/1 bit Protocol TCP/IP, IPX/SPX Security WEP, WPA, WPA2 Network interface: standard Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host Type miniB, Bluetooth, USB Host I/F, USB Device 2.0, SD slot, NFC tag Network interface: option Bi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), USB Device Server Option Mobile printing capability Apple AirPrint, Mopria®, Google Cloud Print, NFC, Ricoh Smart Device Connector Network protocol TCP/IP (IP v4, IP v6) Windows® environments Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2 Mac OS environments Macintosh OS X Native v10.11 or later UNIX environments - UNIX Sun® Solaris 10 UNIX environments - HP-UX 11.x, 11i v2, 11i v3 UNIX environments 5.0.7, 6.0, 6.x, RedHat® Linux Enterprise, 7.5 UNIX environments - IBM® AIX V6.1, V7.1 SAP® environments SAP® R/3® SCANNER Scanning: B/W 60 ipm (simplex)/100 ipm (duplex) Scanning: full colour 40 ipm (simplex)/62 ipm (duplex) Compression method BW: TIFF (MH, MR, MMR, JBIG2), Grayscale - Colour: JPEG, Colour: JPEG File formats Single Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A Scan modes E-mail, Folder, USB, SD Card, E-mail, Folder, USB FAX Compatibility ITU-T (CCITT) G3 Transmission speed 2 seconds Modem speed: maximum 33.6 Kbps Resolution: standard 8x7.7 line̸ mm, 200x200 dpi Compression method MH, MR, MMR, JBIG, MH, MR, MMR, JBIG Scanning speed 61 spm Page memory size Standard: 4 MB, With optional SAF memory: 8 MB SAF memory size Standard: 4 MB (approximately 320 pages), Optional: 60 MB (approximately 4,800 pages) PAPER HANDLING Recommended paper size A4, A5, A6, B5, B6 Paper input: standard 600 sheets Paper input: maximum 2,600 sheets Paper output: standard 500 sheets Paper output: maximum 500 sheets Paper weight - Trays: 64 - 120 g̸ m² Paper weight - Bypass: 60 - 220 g̸ m² Paper weight - Duplex: 64 - 120 g̸ m² Paper types Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Preprinted paper, Bond paper, Envelope, Label paper, OHP ECOLOGY Power consumption: max. Less than 1,500 W Power consumption: operation 710 W Power consumption: ready 88.2 W Power consumption: sleep 0.65 W TEC* 0.77 kWh⁄week CONSUMABLES Starter toner 10,000 prints Toner (regular yield) 25,500 prints
