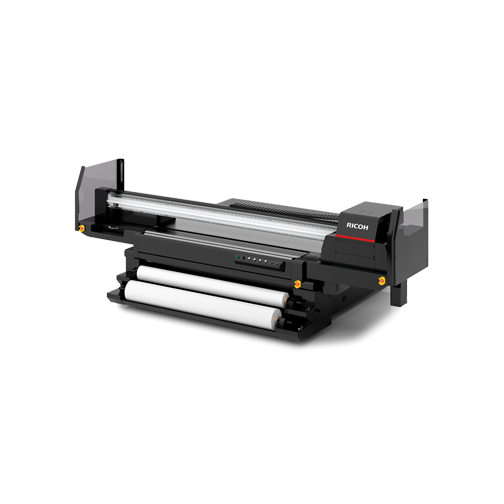

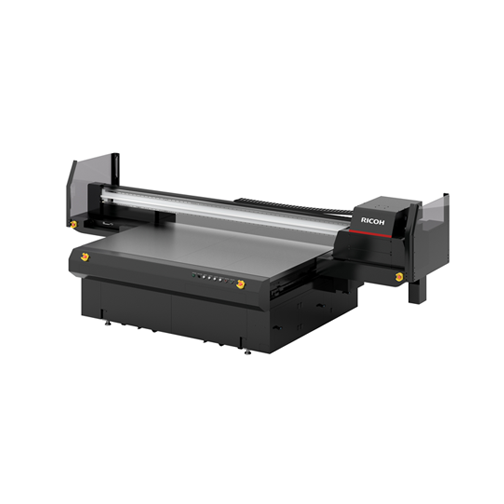

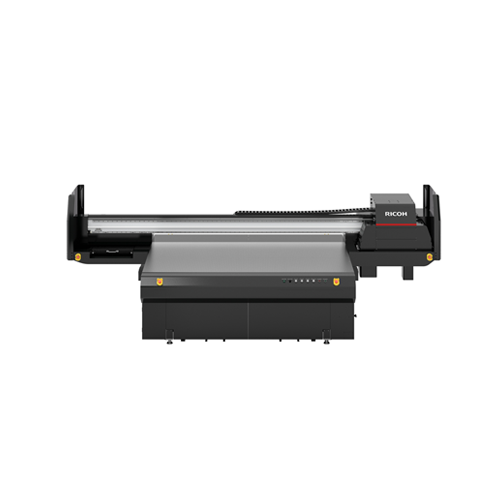

Pro TF6251 UV Flatbed Printer

Up to 116m2/h: Productivity has never been more affordable. The ideal printing solution for media versatility and application potential thanks to its new Roll to Roll feature.

Tap into the profitable sign and graphics market by producing products fast and efficiently on substrates up to 11 cm thick with the RICOH Pro TF6251 UV flatbed printer.

The RICOH Pro TF6251 is the ideal solution to boost productivity and diversify applications beyond traditional signage.

Capitalise on emerging markets, including short run packaging, promotional products, and industrial and interior décor. Achieve industry-leading productivity and pursue ambitious growth plans fueled by high profit potential, low operating costs, superb image quality and exceptional reliability.

Features and benefits

Building on the successful RICOH Pro TF6250, the hybrid system supports the versatile production of a wider range of applications for sign and display, industrial, graphic arts and interior decor.

It also delivers high productivity with its 12 Ricoh inkjet print heads. On its compact 2.5m x 1.3m sized table, they enable flatbed print speeds of up to 116 sqm per hour in four color draft mode. For roll print, speeds are up to 67 sqm per hour in four colour draft mode. Assured, too, is excellent image quality and exceptional reliability.

The combination of tried and tested technology and leading inkjet capability offers a number of benefits for multidiscipline print operations including:
  • A hybrid rigid and flexible solution that supports production of a wider range of applications from one device.
  • A choice of two types of inks:
  • The RICOH DG130 versatile UV ink offers high adhesion and RICOH GP120 graphic art UV ink (for roll to roll only) that delivers high colour gamut for greater flexibility.
  • This creates opportuntiy to print on rigid board of up to 11cm depth to allow the expansion of services offered.
  • Allows Faster curing and lower energy using RICOH LED lamps to save time and money.
  • Low print temperature to ensure the careful treatment of the printed substrate.
  • Low energy consumption for more environmentally conscious and cost effective production.
  • Greenguard certified inks supporting a sustainable approach.
Operator productivity is maximised by the RICOH Pro TF6251’s easy to operate, updated user interface. It allows last minute adjustments and simplifies operation with capabilities such as auto material thickness detection.

Further efficiency is provided by ColorGATE Productionserver Select. Users benefit from consistent and predictable colour output and spot colour support for client satisfaction. As well as from container and tiling functions, and process automation. The Adobe PDF Print Engine is key to outstanding performance.

Specifications
GENERAL
Configuration True Flatbed + Roll2Roll (Opt)
Copying/printing process UV based ink (all 7 colours)
Paper source: standard Rigid boards
Resolution 635 x 1,800 dpi
Grayscale printing 8 levels
Memory capacity 4 GB (PC Rip)
Hard Disk Drive 100 GB (PC Rip)
Power source 208 - 240 V, 30 A (max.), 60 Hz
Dimensions (W x D x H) 4,812 x 2,200 x 1,580 mm
Weight 1,650 kg
PRINTER
Controller board PC Rip (External)
CPU Intel® CoreTM i5 2 GHz or more recommended
Print speed 116 m²⁄h
Print resolution Up to 1,800 dpi
Print drivers HDI, Adobe Postscript (ColorGATE/Onyx/Caldera DRVs available)
Fonts European fonts (PS3)
Supported OS Windows® 7, Windows® 10 (64bit)
PAPER HANDLING
Original feed Rigid⁄Roll
Original paper width Rigid Materials: From 210 x 297 mm to 2,500 x 1,300 mm, Roll Materials: Width from 210 x 297 mm to 2,190 mm
Original paper weight Rigid Materials: 45 kg/m², Roll Materials: 55 kg, Rigid Materials Thickness: 110 mm, Roll Materials Thickness: 110 μm - 432 μm
Output paper size Rigid Material: up to 2,500 mm x 1,300 mm, Roll Material: up to 2,190 mm width
Output paper weight Rigid Materials: 45 kg/m², Roll Materials: 55 kg
Roll paper width Roll Materials: Width 2,200 mm / Length 300 m
