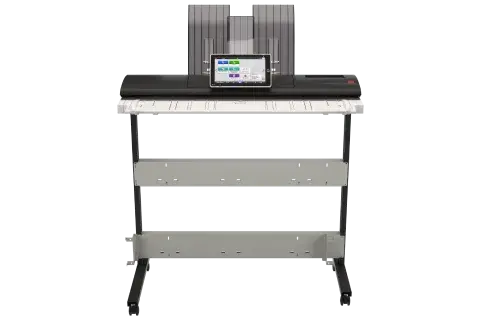

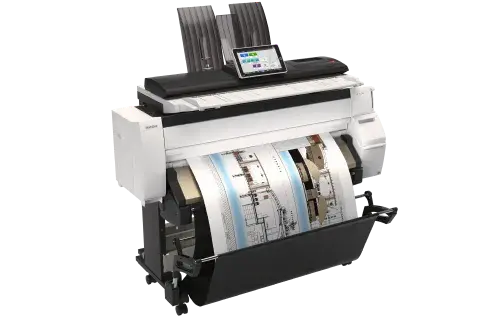

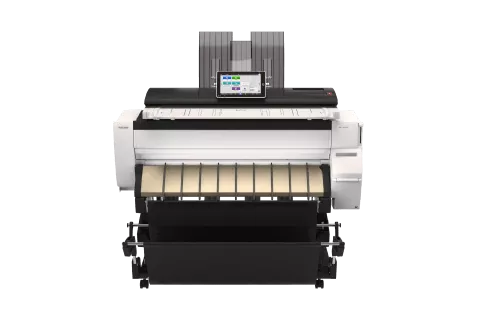

IM CW2200

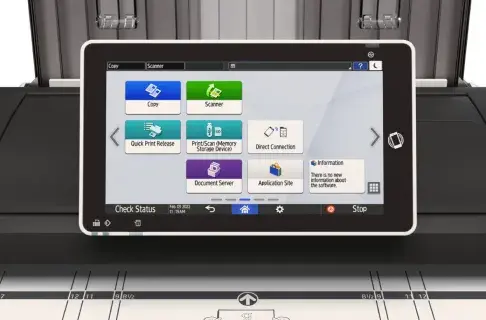

Designed for CAD/GIS, the RICOH IM CW2200 features automatic paper roll feeding as well as enhanced speed and image quality to help you capture more Mono EP volume and increase colour productivity. While advanced GEL-JetTM waterproof ink technology and innovative features such as the smart operation panel and auto nozzle detection, help boost your efficiency to stay highly competitive. All of which makes it ideal for colour GA entry level applications*, both indoor and outdoor.
* Paper Media
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Colour printing
- B&W printing
- Scanning
- Copier
- Features and benefits
-
Taking large format printing to a new level
- Fast scanning speeds - up to 35.3mm/s for colour and up to 106.7mm/s for mono documents
- Automatic paper roll setting - no need to hand feed the paper
- Impressive continuous printing – print documents up to 33 metres long
- Enhanced stacking capacity - up to 10 original sheets
- Specifications
-
GENERAL Configuration Console Copying/printing process On-demand Piezo inkjet system (pigment-based ink) Resolution 600 x 600 dpi Zoom 25% to 400% by 0.1% increments Reproduction ratio Metric: 25%, 35.4%, 50%, 70.7%, 141.4%, 200%, 282.8%, 400% Memory capacity 4 GB Hard Disk Drive 320 GB Power source 220 - 240 V, 1.9 A (max.), 50/60 Hz Dimensions (W x D x H) 1,384 x 675 x 1,220 mm Weight 120 kg COPIER First copy time from standby mode A0 SEF: B/W: high speed copy: 51 sec., standard: 71 sec., A0 SEF: full colour: high speed copy: 81 sec., standard: 155 sec., A1 LEF: B/W: high speed copy: 29 sec., standard: 41 sec., A1 LEF: full colour: high speed copy: 53 sec., standard: 84 sec. Multiple copying 1 to 99 Copy modes Text, Text/Photo, Photo, Drawing, Other (Generation/Map/Background Line/Patched Original/Highlight Pen) PRINTER Controller board Embedded CPU 1.6 GHz Print speed A1 LEF: B/W: 3.8 ppm, Colour: 2.1 ppm, A0 SEF: B/W: 1.9 ppm, Colour: 1.1 ppm Print resolution Speed priority (drawing): 600 x 300 dpi, Standard: 600 x 600 dpi, Quality priority: 600 x 600 dpi, Quality priority mode for only coated paper, film (matted) and special paper: 1,200 x 1,200 dpi Print drivers Adobe Postscript Fonts European 136 fonts (PS3) Network interface: standard 100 base-TX/10 base-T Ethernet, 10/100/1000 base-TX, USB 2.0, USB Host Network interface: optional Wireless LAN IEEE 802.11a/b/g/n Network protocol: standard TCP/IP (IPv4, IPv6) Supported OS Windows 8.1/10 (32/64bit), Windows 11, Server 2012/R2, Server 2016/2019/2022, MacOS 10.14 or later , Citrix XenApp 7.15 LTSR, VirtualApps/Desktops 2012 or later SCANNER Scan speed: colour 35.3 mm/s or ips (600 dpi) Scan speed: B/W 106.7 mm/s (600 dpi) Scan resolution 150 - 600 dpi, TWAIN: up to 2,400 dpi Scan modes: B/W Text, Text/Photo, Text/Line Art (default), Photo, Grayscale Scan detection Auto Detect, Preset Paper Size, Custom Size RGB support Standard Scan protocols - Network TCP/IP Scan protocols - Scan to email SMTP Scan protocols - Scan to folder SMB, FTP Compression method - B/W MH, MR, MMR (default), JBIG2 Compression method - Colour JPEG (5 levels) PAPER HANDLING Original feed Sheet Original set position Center Original scan size Minimum: 210 - 210 mm, Maximum: 914 - 15,000 mm Original paper weight Paper feed guarantee: 0.035 - 1 mm, Image quality guarantee: 0.09 - 0.2 mm (64 - 190 g/m²) Output paper size Maximum Roll Feeder: 914.4 mm width, 33,000 mm length, Maximum bypass: 914.4 mm width, 2,000 mm length Output paper weight Roll Paper: 0.068 - 0.2 mm (51 -190 g/m²), Cut Sheet: 0.068 - 0.4 mm (51 -220 g/m²) Paper feeding capacity Width: 297 - 914 mm, 11" - 36", Bypass: 1 sheet ECOLOGY Maximum power consumption 180 W
