Pro™ C9500
- Resolution Maximum: 2,400 x 4,800 dpi, Print: 1,200 x1,200 dpi
- Continuous print speed 135 ppm
- Technology: 4-drum dry electrostatic transfer technology system with internal transfer belt
- Maximum input capacity: 21,900 sheets

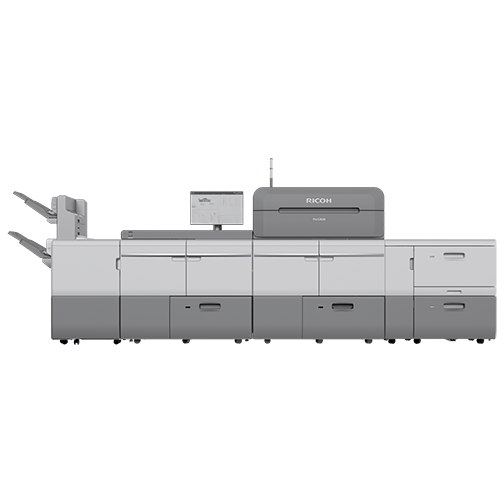

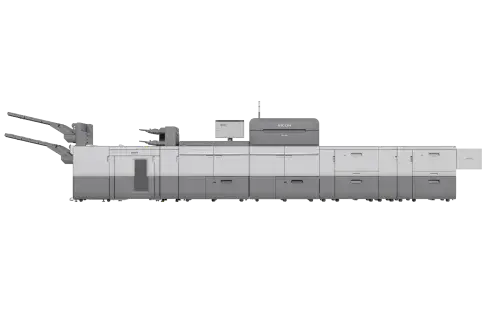

Meet the Pro C9500 colour sheetfed press
Enhanced Paper Capability
No more boundaries – the Pro C9500 elevates your printing capabilities to unprecedented heights. With enriched paper handling, this powerhouse can handle a diverse range of media, from thin sheets to large formats up to 1260mm. Experience smooth printing on delicate 40gsm paper or load up to 470gsm media for robust applications

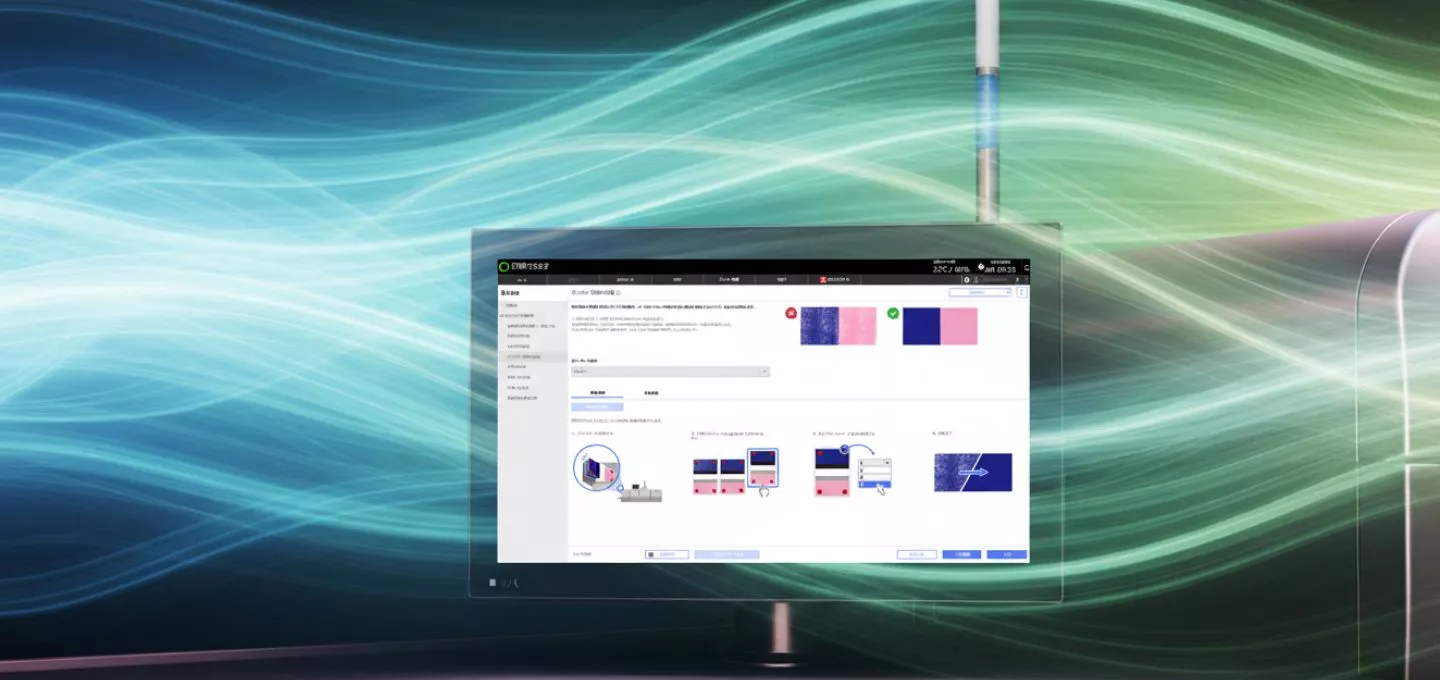

Automated workflow with exceptional quality
The RICOH Pro C9500 makes it easy to create high quality finished products. Matched inline feed and finishing systems enable the press to be tailored to any production need. Media flexibility can be enhanced with long sheet LCTs. And labour saving inline finishing solutions include a multi-folding unit, a stream punch with crease and perforation capabilities, a high capacity interposer, high capacity stackers, and a choice of professional booklet making systems.

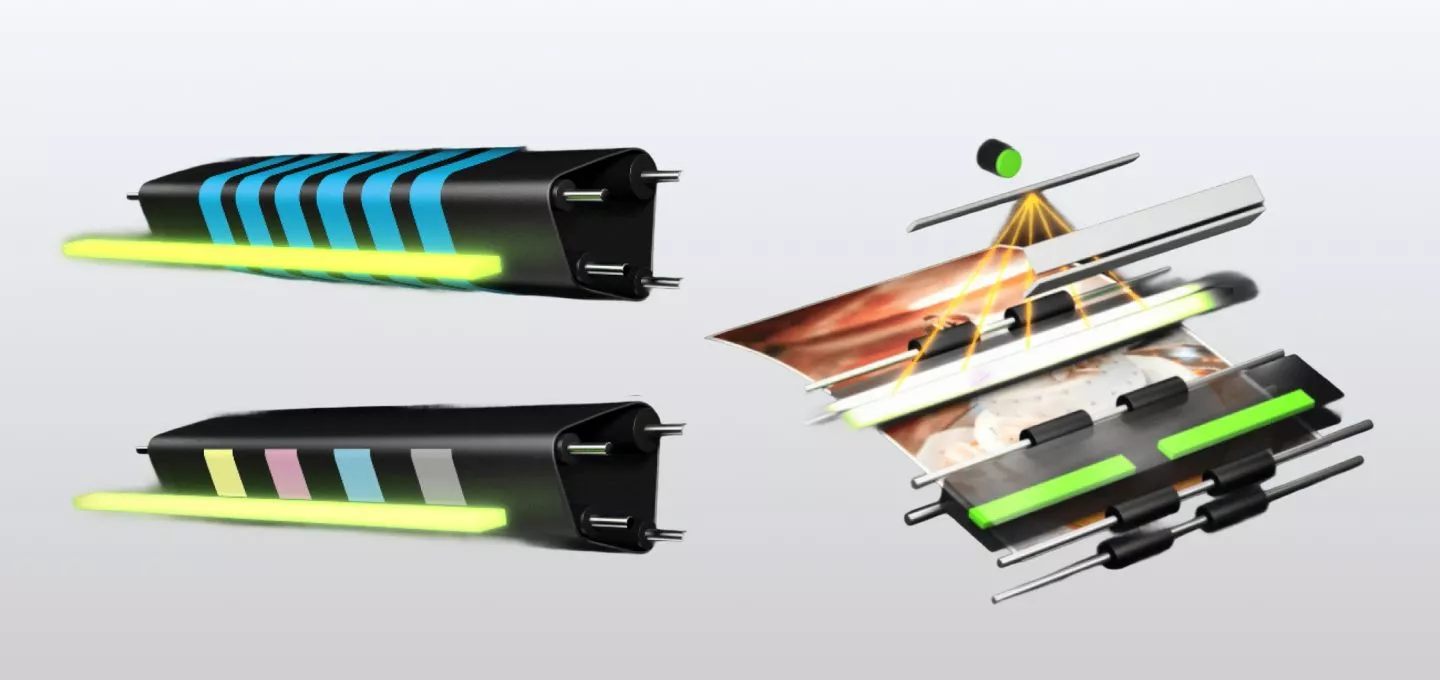

Auto Colour Diagnosis Unit
Say goodbye to guesswork and embrace the precision of the auto colour diagnosis unit. The Pro C9500’s state of the art technology ensures impeccable colour accuracy with every print. Advanced sensors continuously monitor colour output, automatically detecting and adjusting any deviations. With the auto colour diagnosis unit, you can confidently fulfil the most demanding colour-critical projects, knowing that the Pro C9500’s exceptional performance is your key to perfection.
Transform your production environment
The intuitive 21.5 inch operation panel features crystal clear 1,290 x 1,080 pixels. The user-friendly interface enables the coordination of multiple applications. Experience the seamless operation that makes the Pro C9500 a joy to use.
Console
4-drum dry electrostatic transfer system with internal transfer belt
Oil-less, belt fusing method
PxP™ Polymerised chemical toner
135 ppm
Maximum: 2,400 x 4,800 dpi, Print: 1,200 x 1,200 dpi
540 seconds
2,520 x 990 x 1,870 mm
1,100 kg
220 - 240 V, 50/60 Hz, 64 A
2,600,000 pages
Water-based CMYK
100 dpi, 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi, Scan speed, Maximum scan area
Standard 1st tray: 2,200 sheets, Standard 2nd tray: 2,200 sheets, Optional bypass tray: 500 sheets, Optional vacuum feed LCT T1 tray: 2,200 sheets, Optional vacuum feed LCT T2 tray: 2,200 sheets
21,900 sheets
15,000 sheets
Maximum: 330 x 1,260 mm, A6 - SRA3
326 x 1,255 mm
Standard 1st tray: 40 - 470 g/m², Standard 2nd tray: 40 - 470 g/m², Optional bypass tray: 52.3 - 220 g/m², Optional vacuum feed LCT T1 tray: 40 - 470 g/m², Optional vacuum feed LCT T2 tray: 40 - 470 g/m²
SRA3, A3, A4, A5, A6, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, F, Folio, 16 KAI, DLT, Government LG, G LT, Eng Quatro, Com10, Monarch, C5, C6, DL Env, 8K, 16K, SRA3, A3, A4, A5, A6, B4, B5, B6, Legal, Letter, Half Letter, Executive, Executive, F/GL, Foolscap, Folio, 16 KAI, DLT, Government LG, G LT, Eng Quatro, COM10, C5, 8K, 16K, A3, A4, A5, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, A3, A4, A5, A6, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, DLT, Government LG, G LT, Eng Quatro, 8K, SRA3, COM10, Monarch, C5, C6, DL Env
A3, A4, A5, A6, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, A3, A4, A5, A6, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, DLT, Government LG, G LT, Eng Quatro, 8K, A3, A4, A5, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, A3, A4, A5, A6, B4, B5, B6, A3+, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, DLT, Government LG, G LT, Eng Quatro, 8K
A3, A4, A5, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, A3, A4, A5, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, A3, A4, A5, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI, A3, A4, A5, B4, B5, B6, Legal, Letter, Half Letter, Executive, F/GL, Foolscap, Folio, 16 KAI
SRA3+, SRA3, A3, A4, A5, A6, B4, B5, B6
SRA3+, SRA3, A3, A4, A5, A6, B4, B5, B6
Operator replaceable units, Heavy paper option, High-capacity stacker
