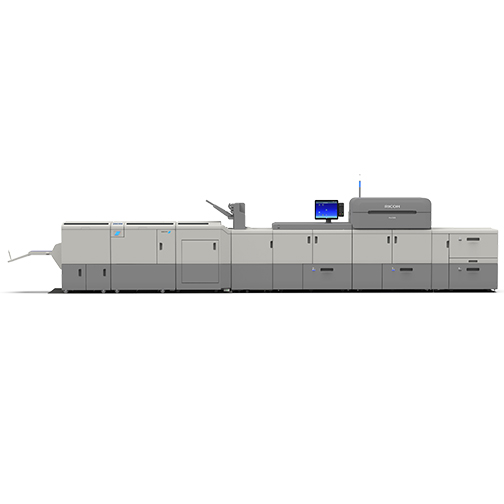

Pro™ C9200 Series
Our flagship digital sheet feed presses offer the essential capabilities for a successful offset-to-digital migration: quality comparable to offset, high reliability for long runs, generous paper capacity, extensive media support, and ease of use. Add optional software and inline finishing options, and you can produce many applications in-house using one device. These digital presses allow you to meet your ever changing client requirements.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Colour printing
- USB connection
- Smart panel
- 110 PPM
- 135 PPM
- Features and benefits
The Pro C9200 systems can be tailored to meet all your production needs. With a modular concept you can add a variety of inline feed and finishing options to meet your workflow demands. Enhanced options further expand the variety of inline professional application capabilities. In a busy print environment, a versatile and productive platform can be the difference between success and failure. Printing onto a wide variety of media Ricoh's latest flagship digital sheet fed press, the Pro C9200 Series, delivers astonishing quality at an express speed.
Bridging the gap between offset and digital processes, they enable users to print high quality digital print collateral more quickly and more affordably.
- Print quality that is comparable to offset.
- Full engine speed maintained at all media weights up to 470gsm.
- Auto duplex on long sheets up to 1030mm and 1260mm in simplex.
- Extensive media support includes substrates such as textured, envelopes, and translucent stocks.
- Modular configuration to suit your needs.
- New inline finishing allows you a wider variety of booklet applications.
GENERAL Configuration Console Technology 4-drum dry electrostatic transfer system with internal transfer belt Fusing Oil-less, belt fusing method Maximum printable area 326 x 1,255 mm Warm-up time Less than 540 seconds First output speed 22 seconds Continuous output speed - Full colour 135 pages per minute Continuous output speed - B/W 135 pages per minute Laser resolution - Maximum 2,400 x 4,800 dpi Memory - Standard 1 GB Life 5 years or 60,000,000 output Dimensions (W x D x H) 2,520 x 990 x 1,500 mm Weight 1,076 kg Power source 220 - 240 V, 32 A x2, 50/60 Hz Power consumption Less than 9,000W PRINTER Printer language - Standard PCL6, Adobe® PostScript® 3™ Print resolution - Maximum 1,200 dpi Interface - Standard SD slot, USB Host I/F, Ethernet 10 base-T/100 base-TX Network protocol - TCP/IP IP v4, IP v6 Windows® environments Windows® 10 Enterprise PAPER HANDLING Recommended paper size SRA3, A3, A4, A5, B4, B5 Paper input capacity - Standard 4,400 sheets Paper input capacity - Maximum 17,600 sheets Paper input capacity - Bypass tray 500 sheets Paper input capacity - Optional Vacuum Feed LCT 3rd-8th Tray,2,200 sheets each Paper weight - Paper tray(s) 52 - 470 g/m² Paper weight - Bypass tray 52 - 216 g/m² Paper weight - Duplex 52 - 470 g/m² Paper weight - Vacuum Feed LCT 3rd-4th tray,52 - 470 g/m², 5th-8th tray,52 - 400 g/m² ECOLOGY Power consumption - Maximum 9,000 W CONSUMABLES Toner capacity - Black 59,800 prints Toner capacity - Cyan 60,500 prints Toner capacity - Magenta 60,500 prints Toner capacity - Yellow 60,500 prints
