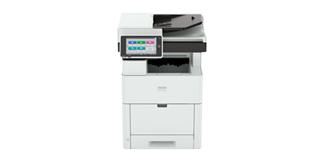

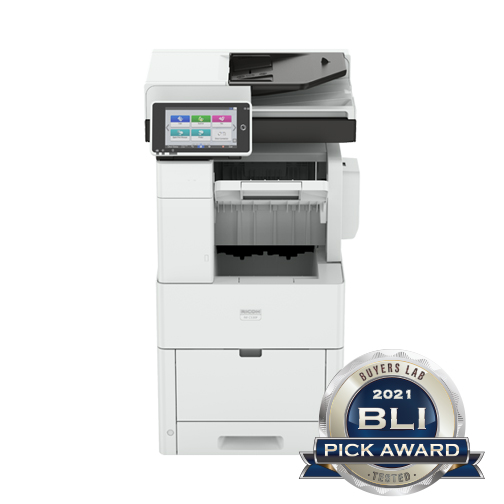

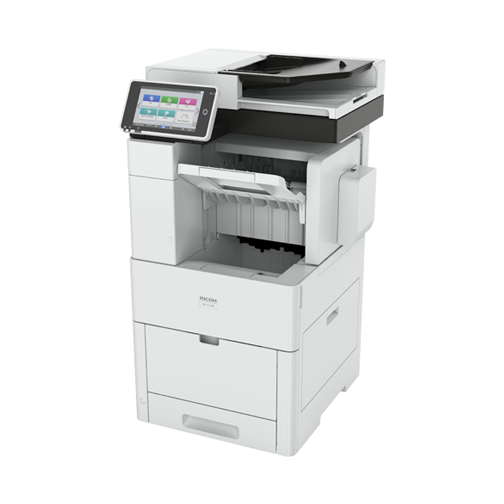

IM C530F

Equipped with customizable features, the IM C530F high-speed printer enables you to optimize your workflows and boost productivity with minimum hassle. Seamlessly print up to 53 pages per minute and deliver up to 3,250 pages, using the large capacity tray. You can also automate manual tasks, such as separating or stapling files together, thanks to the standard finishing function. The UI provides consistent operability across multiple devices in our portfolio.

COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.

  • Colour printing
  • B&W printing
  • Print
  • Fax
  • A4
  • Scanning
  • Copier
Features and benefits

The IM C530F optimizes digital workflows with apps and solutions available in the Cloud. As a result, all of your processes can work seamlessly, without costly interruptions or waiting times.

  • Seamlessly print up to 53 pages per minute
  • Share and instantly use all types of information, thanks to the MFP cloud connection
  • Easily customize, manage and add new features, using the new 7” touchscreen control panel
  • The IM C530F is designed to take up less space and leave more room for your pressing needs

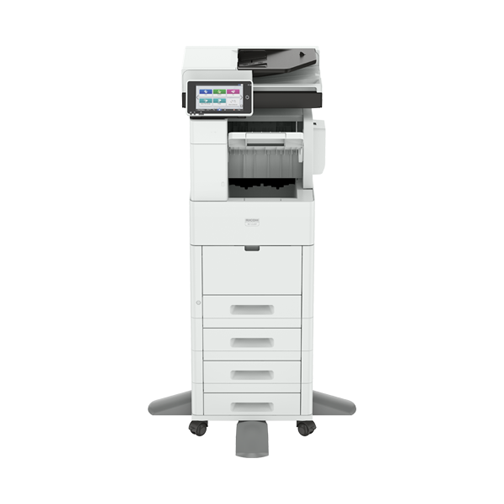

  • Print up to 3,250 sheets without interruption
  • Automate manual tasks, such as separating or stapling files together with the standard finishing function

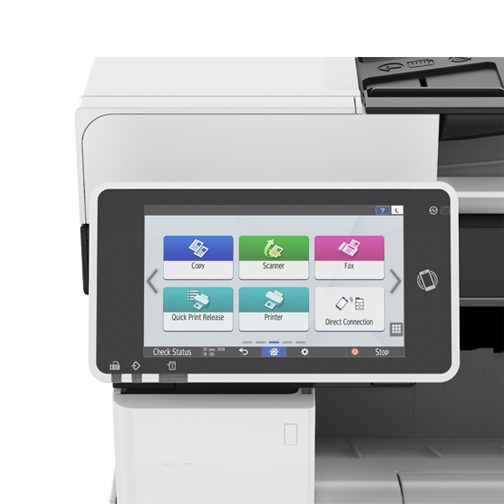

  • The 7” smart operation panel provides consistent operability across multiple devices

Specifications
GENERAL
Configuration Desktop
Printing process Dry –two component electro-photographic printing
Development Non magnetism, single component development
Technology Electro photographic printing system with laser beam
Warm-up time 39 seconds
First output speed: B/W 4 seconds
First output speed: full colour 4.2 seconds
Continuous output speed 53 ppm
Memory: standard 2 GB
Memory: maximum 2 GB
Storage - eMMC:  32GB
SPDF capacity 100 sheets
Duty cycle 150,000
Duplex Yes
Weight 42 kg
Dimensions: W x D x H 470 x 502.8 x 843.7 mm
Power source 220 - 240 V, 50 - 60 Hz
COPIER
First copy speed BW: 6.5 seconds, Colour: 6.6 seconds
Multiple copying Up to 999 copies
Resolution 1,200 x 1,200 dpi
Colour mode setting Default: Black and white mode, Auto Colour Selection (ACS), Full colour, Black and white , Single colour: 
Reproduction ratio 400%, 200%, 155%, 141%, 129%, 122%, 121%, 115%, 100%, 93%, 85%, 82%, 78%, 75%, 73%, 71%, 65%, 50%, 25%
Maximum original size - Book:  A3, DLT, A4
Maximum original size - ADF:  A3, DLT, A4
Zoom From 25% to 400% in 1% steps
Paper selection 1st tray, 2nd tray, 3rd tray (with paper bank), 4th tray (with paper bank), Bypass tray, LCT
PRINTER
CPU ARM CortexA53 - Dual core1.2 GHz
Printer language: standard PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation)
Print resolution - PCL5c:  300 dpi, 600 dpi
Print resolution - PCL6:  600 dpi, 1,200 dpi
Print resolution - PS3:  600 dpi, 1,200 dpi
Interface - Standard:  Mainframe,Ethernet (1000BASE-T/100BASE-TX/10BASE-T), Mainframe,USB2.0, Mainframe,USB Host 2.0 (3G Dongle only), Mainframe,Fax, Bluetooth 4.2, SD card slot (1Slot/Support SDHC memory card), USB host (Type A:1Port/Support USB flash memory), Optional USB host (TypeA:1Port/Support keyboard), Optional USB host (Type Mini B:1Port/Support NFC IC card R/W), MicroSD card slot for expansion of ROM storage of the operation unit, Wireless LAN (IEEE 802.11 a/b/g/n), NFC Tag (Include :ISO14443 Type A, NFC Forum Type2 Tag Compliant)
Interface - Option:  Wireless LAN (IEEE 802.11a/b/g/n)
Mobile printing capability Apple AirPrint, Mopria®, Google Cloud Print, Ricoh Smart Device Connector
Windows® environments Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012R2, Windows® Server 2016
Mac OS environments Macintosh 8.6 or later (OS X Classic), Macintosh OS X v10.12 or later
UNIX environments - UNIX Sun® Solaris 9
UNIX environments - HP-UX 11.x, 11i v2, 11i v3
UNIX environments - SCO OpenServer 5.0.7, 6.0
UNIX environments - RedHat® Linux Enterprise 4, 5, 6
UNIX environments - IBM® AIX V6.1, V7.1, V7.2
UNIX environments - Citrix XenApp 7.15 or Later
SAP® environments SAP® R/3®, SAP® S/4®
Network/operating system - PCL5c:  Windows 7 (32/64bit), Windows 8.1 (32/64bit), Windows 10 (32/64bit), Server 2008 (32/64bit), Server 2008R2 (64bit), Server 2012/R2 (64bit), Server 2016, SAP R/3, SAP S/4, Unix Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
Network/operating system - PCL6:  Windows 7 (32/64bit), Server 2008 (32/64bit), Server 2008R2 (64bit), Windows 8.1 (32/64bit), Server 2012/R2 (64bit), Windows 10 (32/64bit), Server 2016
Network/operating system - PS3:  Windows 7 (32/64bit), Server 2008 (32/64bit), Server 2008R2 (64bit), Windows 8.1 (32/64bit), Windows 10 (32/64bit), Server 2012/R2 (64bit), Server 2016, Unix Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
SCANNER
Scanning speed: SPDF - Simplex:  BW,46 ipm (A4, 200dpi), BWColour,46 ipm (A4, 200dpi)
Scanning speed: SPDF - Duplex:  BW,71 ipm (A4, 200dpi), BWColour,52 ipm (A4, 200dpi)
Resolution: maximum 600 dpi
Resolution: standard - Default:  200 dpi
Compression method BW: TIFF (MH, MR, MMR, JBIG2), Grayscale, Colour: JPEG
File formats - Single Page TIFF Compression on, Compression off
File formats - Single page JPEG Compression on
File formats - Single page PDF Compression on, Compression off
File formats - Single page High compression PDF Compression on
File formats - Single page PDF/A Compression on, Compression off
File formats - Multi page TIFF Compression on, Compression off
File formats - Multi page PDF Compression on, Compression off
File formats - Multi page High compression PDF Compression on
File formats - Multi page PDF/A Compression on, Compression off
Scan modes E-mail, Folder, USB, SD Card
Scan area: main scan 215.9 mm
Scan area: sub scan - SPDF 405.6 mm
Scan area: sub scan Book
Network TWAIN - OS:  Server2008(32bit)/7(32bit)/8.1(32bit)/10(32bit), Server2008(64bit)/7(64bit)/8.1(64bit)/10(64bit)/Server2008R2(64bit)/Server2012(64bit)/Server2012R2(64bit)/Server2016(64bit)/Server2019(64bit)
Network TWAIN - Resolution:  B/W,Book, B/W,ARDF, Colour,Book, Colour,ARDF
Network TWAIN - Scan Mode:  Standard / Photo / OCR / Filing
Network TWAIN - Image Adjustment:  Brightness / Contrast / Threshold / Gamma Adjustment / Halftone Pattern
Network TWAIN - Endorser:  Date / Page Number / Text
Scan mode (B/W) BW Text/Line Art, BW Text, BW Text/Photo, BW Photo, BW Grayscale
Scan mode (colour) Full Color Text/Photo, Full Color Glossy Photo, Auto Color Select
Image density - Automatic/Manual:  Yes (adjustable with 7 steps)
SADF/batch mode Yes
Search method of email address in HDD Name, E-mail address
FAX
Circuit PSTN, PBX
Modem speed: maximum 33.6 Kbps
Resolution: standard 8x3.85 line̸ mm, 200x100 dpi, 8x7.7 line̸ mm, 200x200 dpi
Compression method MH, MR, MMR
Scanning speed 46 spm
Page memory size Standard: 9.7 MB
SAF memory size Standard: 4 MB (approximately 320 pages)
SID code (sender ID) Yes
Programming by OMR No
Telephone specifications Handset/telephone, Monitor speaker, On hook dial, Tone transmission, Pause, Pulse/tone selection, Reception mode selection, Auto answer delay time, Busy tone detection
PAPER HANDLING
Recommended paper size - Standard paper tray(s):  A4, A5, B5, Legal, Letter, Half Letter, Executive, Foolscap, Monarch, C5, DL Env
Recommended paper size - Optional paper tray(s):  A4, A5, B5, Legal, Letter, Half Letter, Executive, Foolscap, C5, Envelopes
Recommended paper size - LCT:  A4
Recommended paper size - Bypass tray:  A4, A5, A6, B5, Legal, Letter, Half Letter, Executive, Foolscap, Monarch, C5, C6, DL Env, Custom Size paper
Paper input: standard 550 sheets
Paper input: bypass 150 sheets
Paper input: option - Paper bank unit:  550 sheets
Paper input: option - LCT:  2,000 sheets
Paper input: maximum 3,250 sheets
Paper output: standard 500 sheets
Paper weight 60 - 220 g/m²
Paper weight - Optional tray(s):  60 - 220 g/m²
Paper weight - Optional tray (LCT):  60-176 g/m²
Paper weight - Bypass:  60 - 220 g/m²
Paper weight - Duplex:  60 - 176 g/m²
Paper types Plain paper, Recycled paper, Special paper 1-3, Letterhead, Envelope, Coated paper, Middle thick paper, Thick paper 1, Thick paper 2
ECOLOGY
Power consumption: max. Less than 1,650 W
Power consumption operation: B/W 578 W
Power consumption operation: Full colour 633 W
Power consumption: ready 99.8 W
Power consumption: sleep 0.75 W
TEC* 0.73 kWh⁄week
Sound - Sound power level:  Standby/energy saving,30.4 dB, Printing, dB, Copying,Nominal value, dB
Sound - Sound pressure level:  Standby/energy saving, dB, Printing, dB
Safety regulations - Environmental standard:  BAM, Canada Ecologo®
Usage and durability ratings - APV: maximum:  10,000 prints
Usage and durability ratings - Duty:  120,000 prints
Usage and durability ratings - Estimated life:  5 years or 600,000 output
OUTPUT TRAYS AND FINISHER OPTIONS
4x 550-sheet paper tray - Paper size:  A4, A5, B5
4x 550-sheet paper tray - Paper weight:  60-220 g/m²
2,000-sheet Large capacity tray - Paper size:  A4, LT
2,000-sheet Large capacity tray - Paper weight:  60-176 g/m²
CONSUMABLES
Starter toner Black: 7,500 prints, Cyan: 4,500 prints, Magenta: 4,500 prints, Yellow: 4,500 prints
Toner (black) 20,500 prints
Toner: cyan/magenta/yellow 18,000 prints
Photo conductor/developer unit - Black:  60,000 sheets
Photo conductor/developer unit - Cyan/magenta/yellow:  60,000 sheets
Fusing unit 240,000 sheets
Waste toner bottle 30,000 sheets
