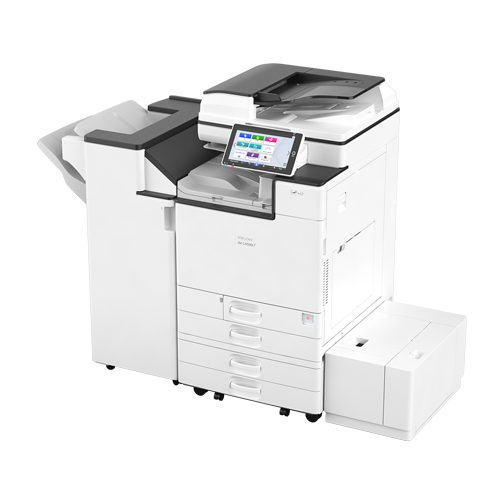

IM C4500LT
A powerful all-rounder, this productive 45 ppm colour all in one printer ticks all the boxes. Part of Ricoh's flagship A3 colour multifunctional range, it is designed to meet demanding higher usage requirements and delivers high quality colour and black-and-white print output at speed. Indeed, equipped with an optional EFI Fiery print server, it will produce print of a quality that is more usually associated with professional print shops!
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Wifi networking
- Colour printing
- Fax
- USB connection
- A3
- Scanning
- Smart panel
- Copier
- SRA3
- 45 PPM
- Features and benefits
-
Ready in an instant, the intuitive 10.1 inch Smart Operation Panel simplifies operation. The IM C4500LT quickly scans paper-based information and uploads it directly to your electronic document management system. The intelligent technology supports mobile working. Business users can connect seamlessly and print from/scan to smart phones and tablets. And, with tap and go Quick Authentication, security is always ensured. Finishing settings, such double sided printing, folding, stapling and punching are easily applied at the printer.
- Productive 45 ppm A3 all in one printer provides all round support
- Optional EFI Fiery print server provides greater control over colour management
- To safeguard information security, the Smart Operation Panel supports Quick Authentication
- Mobile workers can connect seamlessly and print from and scan to their smart phones and tablets
- Digitised documents can be saved to a Cloud-based service or uploaded directly to your electronic document management
- There is a choice of five finishing systems, including a hybrid finisher that neatly crimps document sets for a finger-friendly finish
- To meet enterprise requirements, Ricoh offers 20, 25, 30, 35, 45, 55 and 60 ppm versions of the same device
- Specifications
-
GENERAL Warm-up time 21 seconds First output speed: B/W 4 seconds First output speed: full colour 5.7 seconds Continuous output speed 45 ppm Memory: standard 2 GB Memory: maximum 4 GB HDD: standard 320 GB HDD: maximum 320 GB ARDF capacity 100 sheets Weight 96 kg Dimensions: W x D x H 587 x 685 x 913 mm Power source 220 - 240 V, 50 - 60 Hz COPIER Multiple copying Up to 999 copies Resolution 600 dpi Zoom From 25% to 400% in 1% steps PRINTER CPU Apollolake A3950 1.6 GHz Printer language: standard PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) Printer language: option Genuine Adobe® PostScript®3™, IPDS, PictBridge, PDF Direct from Adobe® Print resolution: maximum 1,200 x 1,200 dpi Network interface: standard Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B Network interface: option Bi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port) Mobile printing capability Apple AirPrint, NFC, Ricoh Smart Device Connector Windows® environments Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012R2, Windows® Server 2016, Windows® Server 2019 Mac OS environments Macintosh OS X Native v10.11 or later UNIX environments UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX SAP® environments SAP® R/3®, SAP® S/4® Other supported environments IBM iSeries SCANNER Scanning speed: ARDF 80 ipm (200/300 dpi) Resolution: maximum 1,200 dpi File formats Single Page TIFF, Single page JPEG, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A Scan modes E-mail, Folder, USB, SD Card, URL, FTP FAX Circuit PSTN, PBX Transmission speed 2 seconds Modem speed: maximum 33.6 Kbps Resolution: standard 8x3.85 line̸ mm, 200x100 dpi Resolution: option 16x15.4 line/mm, 400x400 dpi Compression method MH, MR, MMR, JBIG Scanning speed 68 spm Memory: standard 4 MB, (320 pages) Memory: maximum 60 MB, (4,800 pages) PAPER HANDLING Recommended paper size - Standard paper tray(s): SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes Recommended paper size - Optional paper tray(s): SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes Recommended paper size - Bypass tray: SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes, Custom Size paper Paper input: standard 1,200 sheets Paper input: maximum 4,700 sheets Paper output: standard 500 sheets Paper output: maximum 3,625 sheets Paper weight - Trays: 60 - 300 g̸ m² Paper weight - Bypass: 52 - 300 g̸ m² Paper weight - Duplex: 52 - 256 g̸ m² Paper types Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Gloss paper, Label paper, OHP ECOLOGY Power consumption: max. Less than 1,850 W Power consumption operation: B&W 644.6 W Power consumption operation: Full colour 729.9 W Power consumption: ready 59 W Power consumption: sleep 0.62 W TEC* 0.52 kWh⁄week OUTPUT TRAYS AND FINISHER OPTIONS 1x 550-sheet paper tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 1x 550-sheet paper tray - Paper weight: 60-300 g/m² 2x 550-sheet paper tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 2x 550-sheet paper tray - Paper weight: 60-300 g/m² 2,000-sheet Large capacity tray - Paper size: A4 2,000-sheet Large capacity tray - Paper weight: 60-300 g/m² 1,500-sheet side Large capacity tray - Paper size: A4, B5 1,500-sheet side Large capacity tray - Paper weight: 60-300 g/m² 1,000-sheet Hybrid finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 1,000-sheet Hybrid finisher - Paper weight: 52-300 g/m² 1,000-sheet Hybrid finisher - Stack capacity: 1,000 sheets 1,000-sheet Hybrid finisher - Staple capacity: 50 sheets 1,000-sheet Hybrid finisher - Staple paper size: A3, A4, B4, B5 1,000-sheet Hybrid finisher - Staple paper weight: 52-105 g/m² 1,000-sheet Hybrid finisher - Staple positions: Top, Bottom, 2 Staples 3,000-sheet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 3,000-sheet finisher - Paper weight: 52-300 g/m² 3,000-sheet finisher - Stack capacity: 3,000 sheets 3,000-sheet finisher - Staple capacity: 50 sheets 3,000-sheet finisher - Staple paper size: A3, A4, B4, B5 3,000-sheet finisher - Staple paper weight: 52-105 g/m² 3,000-sheet finisher - Staple positions: Top, Bottom, 2 staples, Top-slant 1,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 1,000-sheet Booklet finisher - Paper weight: 52-300 g/m² 1,000-sheet Booklet finisher - Stack capacity: 1,000 sheets 1,000-sheet Booklet finisher - Staple capacity: 50 sheets 1,000-sheet Booklet finisher - Staple paper size: A3, A4, B4, B5 1,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m² 1,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet 2,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 2,000-sheet Booklet finisher - Paper weight: 52-300 g/m² 2,000-sheet Booklet finisher - Stack capacity: 2,000 sheets 2,000-sheet Booklet finisher - Staple capacity: 50 sheets 2,000-sheet Booklet finisher - Staple paper size: A3, A4, B4, B5 2,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m² 2,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet 500-sheet Internal finisher - Paper size: A3, A4, A5, A6, B4, B5 500-sheet Internal finisher - Paper weight: 52-300 g/m² 500-sheet Internal finisher - Stack capacity: 500 sheets 500-sheet Internal finisher - Staple capacity: 50 sheets 500-sheet Internal finisher - Staple paper size: A3, A4, B4, B5 500-sheet Internal finisher - Staple paper weight: 52-105 g/m² 500-sheet Internal finisher - Staple positions: Top, Bottom, 2 staples Internal shift tray - Tray capacity: 250 sheets Internal shift tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 Internal shift tray - Paper weight: 52-300 g/m² One-bin tray - Tray capacity: 125 sheets One-bin tray - Paper size: A3, A4, A5, B4 One-bin tray - Paper weight: 52-300 g/m² CONSUMABLES Toner (black) 33,000 prints Toner (cyan/magenta/yellow) 22,500 prints
