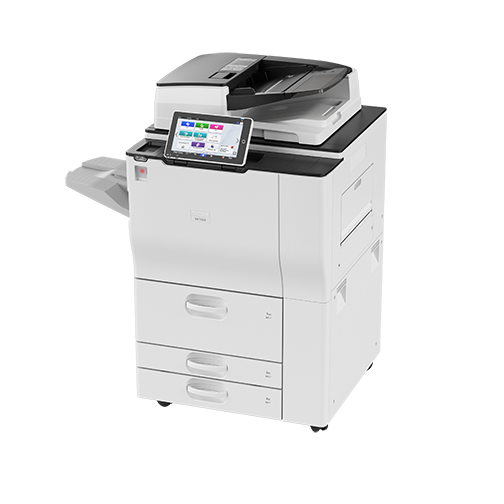

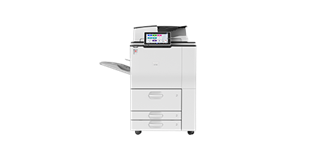

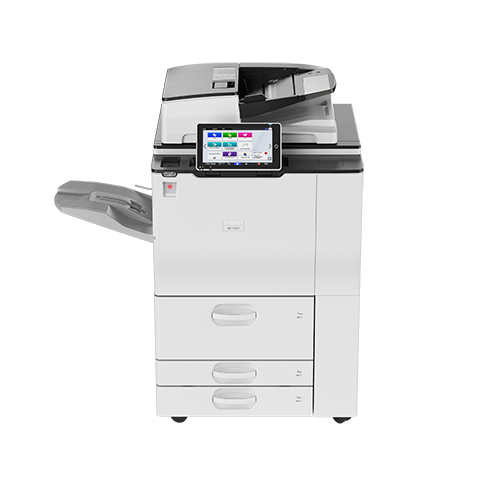

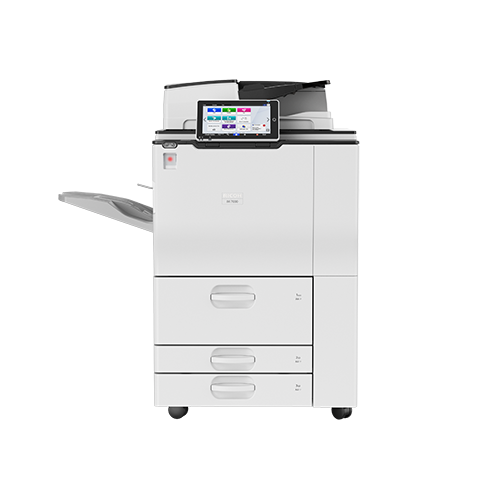

IM 7000
The IM 7000 is designed to optimise digital workflows with a suite of end-to-end apps and advanced solutions. Share and instantly use all types of information, thanks to the MFP Cloud connection. While the smart operation panel provides consistent operability across multiple devices in our portfolio.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- B&W printing
- Fax
- A3
- Scanning
- Smart panel
- Copier
- 70 PPM
- Features and benefits
-
Use the IM 7000 to revolutionise your printing and scanning by:
- Downloading and installing new features, applications and upgrades whenever you need them

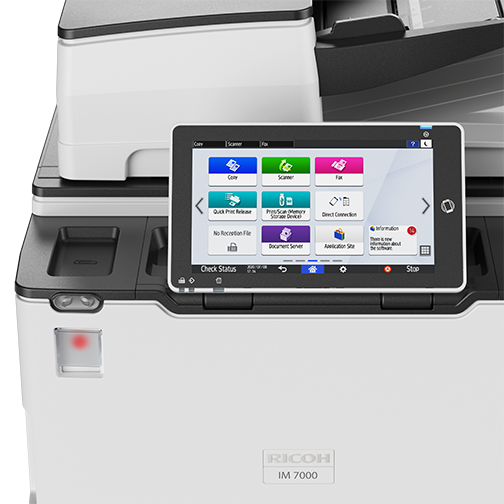

- Using the touchscreen control panel to effortlessly customise, manage and add new features
- Scanning between 220 and 240 impressions per minute in black and white and colour, and detecting small paper sizes (e.g bank slips), with state-of-the-art scanning features that seamlessly integrate with existing scanning workflows
- Using the wide range of finishing features, which include a stapler and booklet finishers, two multi-folding units and large capacity trays
- Specifications
-
GENERAL Configuration Console Printing process Dry, two component & electro-photographic Warm-up time 20 seconds First output speed: B/W 4.7 seconds Continuous output speed 70 ppm Memory: standard 2 GB Memory: maximum 2 GB HDD: standard 320 GB HDD: maximum 320 GB Weight 200 kg Dimensions: W x D x H 690 x 883 x 1,161 mm Power source 220 - 240 V, 50 - 60 Hz COPIER Multiple copying Up to 9,999 copies Resolution 600 x 600 dpi Zoom From 25% to 400% in 1% steps PRINTER CPU Intel® Apollo Lake Processor 1.6 GHz Printer language: standard PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) Printer language: option Genuine Adobe® PostScript®3™, IPDS, PDF Direct from Adobe® Print resolution - Maximum: 1,200 x 1,200 dpi Network interface: standard Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host Type A, USB Device I/F Type B, Bluetooth, Wireless LAN (IEEE 802.11 b/g/n), USB Host I/F, SD slot, NFC tag, USB Device (TypeB:1Port) Network interface: option Bi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), RJ45 I/F (Only Copy connect), Ethernet Print only RJ-45 network port Network protocol TCP/IP (IP v4, IP v6) Windows® environments Windows® Server 2008R2, Windows® 7/8.1/10, Windows® Server 2008/2012/2012R2/2016, Windows® Server 2019 Mac OS environments Macintosh OS X v10.12 or later UNIX environments UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux, IBM® AIX, XenDesktop, Citrix XenApp SAP® environments SAP® R/3®, SAP® S/4® SCANNER Scanning: B/W 120 ipm (simplex)/240 ipm (duplex) Scanning: full colour 120 ipm (simplex)/240 ipm (duplex) Resolution: maximum 1,200x1,200 dpi Bundled drivers Network TWAIN Compression method BW: TIFF (MH, MR, MMR, JBIG2), Grayscale - Colour: JPEG File formats Single Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A Scan modes E-mail, Folder, USB, SD Card, URL, FTP, SMB FAX Circuit PSTN, PBX Compatibility ITU-T (CCITT) G3 Transmission speed G3: approximately 2 seconds (200 x 100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission), G3: approximately 3 seconds (200 x 100 dpi, MMR, ITUT #1 chart TTI off, memory transmission) Modem speed: maximum 33.6 Kbps Resolution Standard mode: 8 x 3.85 line⁄mm, 200 x 100 dpi, Detail mode: 8 x 7.7 line⁄mm, 200 x 200 dpi, Super fine mode: 8 x 15.4 line⁄mm, 16 x 15.4 line⁄mm, 400 x 400 dpi (with optional SAF memory) Compression method MH, MR, MMR, JBIG Page memory size Standard: 8 MB, With optional SAF memory: 16 MB SAF memory size Standard: 4 MB (approximately 320 pages), Optional: 60 MB (approximately 4,800 pages) Memory backup 1 hour(s) PAPER HANDLING Recommended paper size A3, A4, A5, A6, B4, B5, B6 Paper input: standard 4,300 sheets Paper input: bypass 100 sheets Paper input: maximum 8,700 sheets Paper output: standard 500 sheets Paper output: maximum 3,500 sheets Paper weight - Trays: 52 - 256 g̸ m² Paper weight - Bypass: 52 - 300 g̸ m² Paper weight - Duplex: 64 - 256 g̸ m² ECOLOGY Power consumption: max. Less than 1,900 W Power consumption: sleep 0.6 W TEC* 1.326 kWh⁄week CONSUMABLES Toner (black) 43,000 prints
