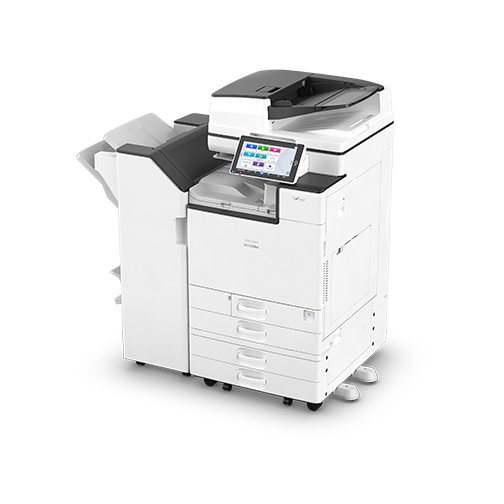

IM C5500A
Meet your new office manager. Ricoh’s IM C5500A colour all in one printer will quickly meet your document needs. Designed for demanding, higher volume applications, it will scan and distribute information, print complex multi-page documents and neatly finish them, ready for distribution. Ricoh’s Smart Operation Panel simplifies operation. Business users can connect seamlessly and print from / scan to their smart phones and tablets. And, with tap and go Quick Authentication, security is assured.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Colour printing

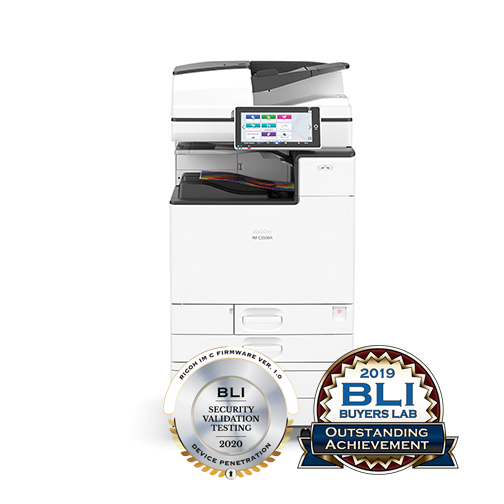

- Award winning
- Fax
- A3
- Scanning
- Copier
- SRA3
- 55 PPM
- Features and benefits
-
To save time, double sided documents are scanned in a single pass and can be uploaded directly to your document management system. Colour and black and white output is delivered at the same express speed and to reduce manual handling requirements, documents can be folded, stapled and punched inline. Offering genuine IPDS support, the IM C5500A will even print mission critical transactional documents, such as invoices and dispatch notes, running them overnight to maximise availability.
- High speed 55 ppm all in one printer delivers a more productive all-round performance
- Equipped with an optional EFI print server, the all in one printer can be managed within a Fiery workflow

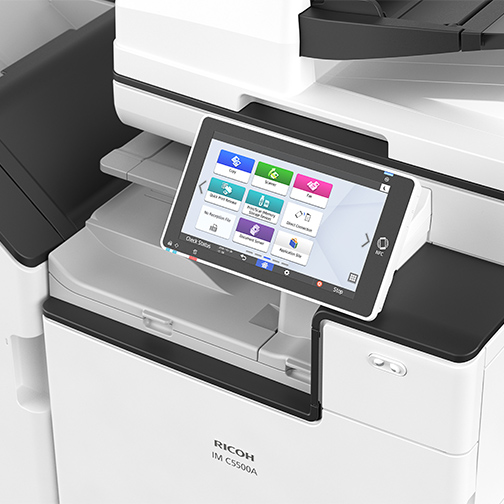

- Super-sized 10.1 inch Smart Operation Panel lights up when approached, providing access to a suite of intelligent features
- To safeguard information security, the Smart Operation Panel supports card-based Quick Authentication
- Business critical documents, such as invoices and dispatch notes, can be scheduled to print overnight
- Optional finishing systems include a multi folding unit and a professional booklet finisher
- With Always Current Technology™ optional workflow solutions, such as Pull print printing, can be installed later, if required
- Specifications
-
GENERAL Warm-up time 21 seconds First output speed: B/W 3.1 seconds First output speed: full colour 4.6 seconds Continuous output speed 55 ppm Memory: standard 2 GB Memory: maximum 4 GB HDD: standard 320 GB HDD: maximum 320 GB ARDF capacity 100 sheets SPDF capacity 220 sheets Weight 101.4 kg Dimensions: W x D x H 587 x 685 x 963 mm Power source 220 - 240 V, 50 - 60 Hz COPIER Multiple copying Up to 999 copies Resolution 600 dpi Zoom From 25% to 400% in 1% steps PRINTER CPU ApolloLake E3940 1.6 GHz Printer language: standard PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) Printer language: option Genuine Adobe® PostScript®3™, IPDS, PictBridge, PDF Direct from Adobe® Print resolution: maximum 1,200 x 1,200 dpi Network interface: standard Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B Network interface: option Bi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port) Mobile printing capability Apple AirPrint, Mopria®, NFC, Ricoh Smart Device Connector Windows® environments Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012R2, Windows® Server 2016, Windows® Server 2019 Mac OS environments Macintosh OS X Native v10.11 or later UNIX environments UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX SAP® environments SAP® R/3®, SAP® S/4® Other supported environments IBM iSeries SCANNER Scanning speed: ARDF 80 ipm (200/300 dpi) Scanning speed: SPDF 120 ipm (simplex)/240 ipm (duplex) Resolution: maximum 1,200 dpi File formats Single Page TIFF, Single page JPEG, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A Scan modes E-mail, Folder, USB, SD Card FAX Circuit PSTN, PBX Transmission speed 2 seconds Modem speed: maximum 33.6 Kbps Resolution: standard 8x3.85 line̸ mm, 200x100 dpi Resolution: option 16x15.4 line/mm, 400x400 dpi Compression method MH, MR, MMR, JBIG Scanning speed 81 spm Memory: standard 4 MB, (320 pages) Memory: maximum 60 MB, (4,800 pages) PAPER HANDLING Recommended paper size - Standard paper tray(s): SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes Recommended paper size - Optional paper tray(s): SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes Recommended paper size - Bypass tray: SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes, Custom Size paper Paper input: standard 1,200 sheets Paper input: maximum 4,700 sheets Paper output: standard 500 sheets Paper output: maximum 3,625 sheets Paper weight - Trays: 60 - 300 g̸ m² Paper weight - Bypass: 52 - 300 g̸ m² Paper weight - Duplex: 52 - 256 g̸ m² Paper types Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Gloss paper, Label paper, OHP ECOLOGY Power consumption: max. Less than 1,850 W Power consumption operation: B&W 821.7 W Power consumption operation: Full colour 935.4 W Power consumption: ready 59 W Power consumption: sleep 0.62 W TEC* 0.71 kWh⁄week OUTPUT TRAYS AND FINISHER OPTIONS 1x 550-sheet paper tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 1x 550-sheet paper tray - Paper weight: 60-300 g/m² 2x 550-sheet paper tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 2x 550-sheet paper tray - Paper weight: 60-300 g/m² 2,000-sheet Large capacity tray - Paper size: A4 2,000-sheet Large capacity tray - Paper weight: 60-300 g/m² 1,500-sheet side Large capacity tray - Paper size: A4, B5 1,500-sheet side Large capacity tray - Paper weight: 60-300 g/m² 1,000-sheet Hybrid finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 1,000-sheet Hybrid finisher - Paper weight: 52-300 g/m² 1,000-sheet Hybrid finisher - Stack capacity: 1,000 sheets 1,000-sheet Hybrid finisher - Staple capacity: 50 sheets 1,000-sheet Hybrid finisher - Staple paper size: A3, A4, B4, B5 1,000-sheet Hybrid finisher - Staple paper weight: 52-105 g/m² 1,000-sheet Hybrid finisher - Staple positions: Top, Bottom, 2 Staples 3,000-sheet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 3,000-sheet finisher - Paper weight: 52-300 g/m² 3,000-sheet finisher - Stack capacity: 3,000 sheets 3,000-sheet finisher - Staple capacity: 50 sheets 3,000-sheet finisher - Staple paper size: A3, A4, B4, B5 3,000-sheet finisher - Staple paper weight: 52-105 g/m² 3,000-sheet finisher - Staple positions: Top, Bottom, 2 staples, Top-slant 1,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 1,000-sheet Booklet finisher - Paper weight: 52-300 g/m² 1,000-sheet Booklet finisher - Stack capacity: 1,000 sheets 1,000-sheet Booklet finisher - Staple capacity: 50 sheets 1,000-sheet Booklet finisher - Staple paper size: A3, A4, B4, B5 1,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m² 1,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet 2,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 2,000-sheet Booklet finisher - Paper weight: 52-300 g/m² 2,000-sheet Booklet finisher - Stack capacity: 2,000 sheets 2,000-sheet Booklet finisher - Staple capacity: 50 sheets 2,000-sheet Booklet finisher - Staple paper size: A3, A4, B4, B5 2,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m² 2,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet 500-sheet Internal finisher - Paper size: A3, A4, A5, A6, B4, B5 500-sheet Internal finisher - Paper weight: 52-300 g/m² 500-sheet Internal finisher - Stack capacity: 500 sheets 500-sheet Internal finisher - Staple capacity: 50 sheets 500-sheet Internal finisher - Staple paper size: A3, A4, B4, B5 500-sheet Internal finisher - Staple paper weight: 52-105 g/m² 500-sheet Internal finisher - Staple positions: Top, Bottom, 2 staples Internal shift tray - Tray capacity: 250 sheets Internal shift tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6 Internal shift tray - Paper weight: 52-300 g/m² One-bin tray - Tray capacity: 125 sheets One-bin tray - Paper size: A3, A4, A5, B4 One-bin tray - Paper weight: 52-300 g/m² CONSUMABLES Toner (black) 33,000 prints Toner (cyan/magenta/yellow) 22,500 prints
