Expanding your business horizons

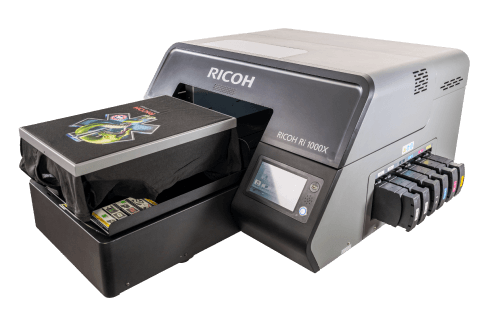

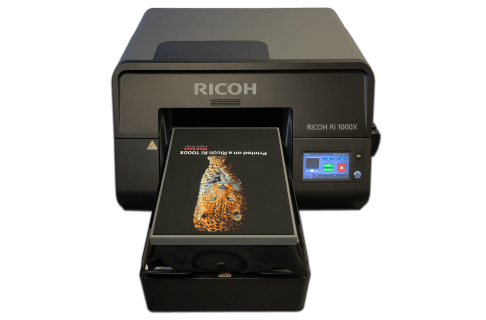

Ricoh's next generation Direct to Garment printer, the Ri 1000x, prints vibrant soft-touch graphics on a wide range of garments and textiles now also with enhanced DTF printing capability.

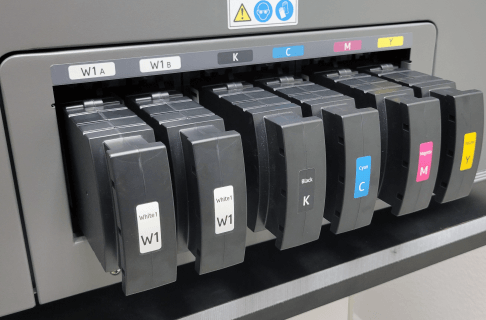

Versatile and productive, it uses Ricoh’s variable drop size inkjet technology and CMYK + white pigment inks to print high resolution graphics onto light and dark coloured fabrics. It supports cotton and polyester and can be used to personalise T-shirts, tote bags and other merchandise.

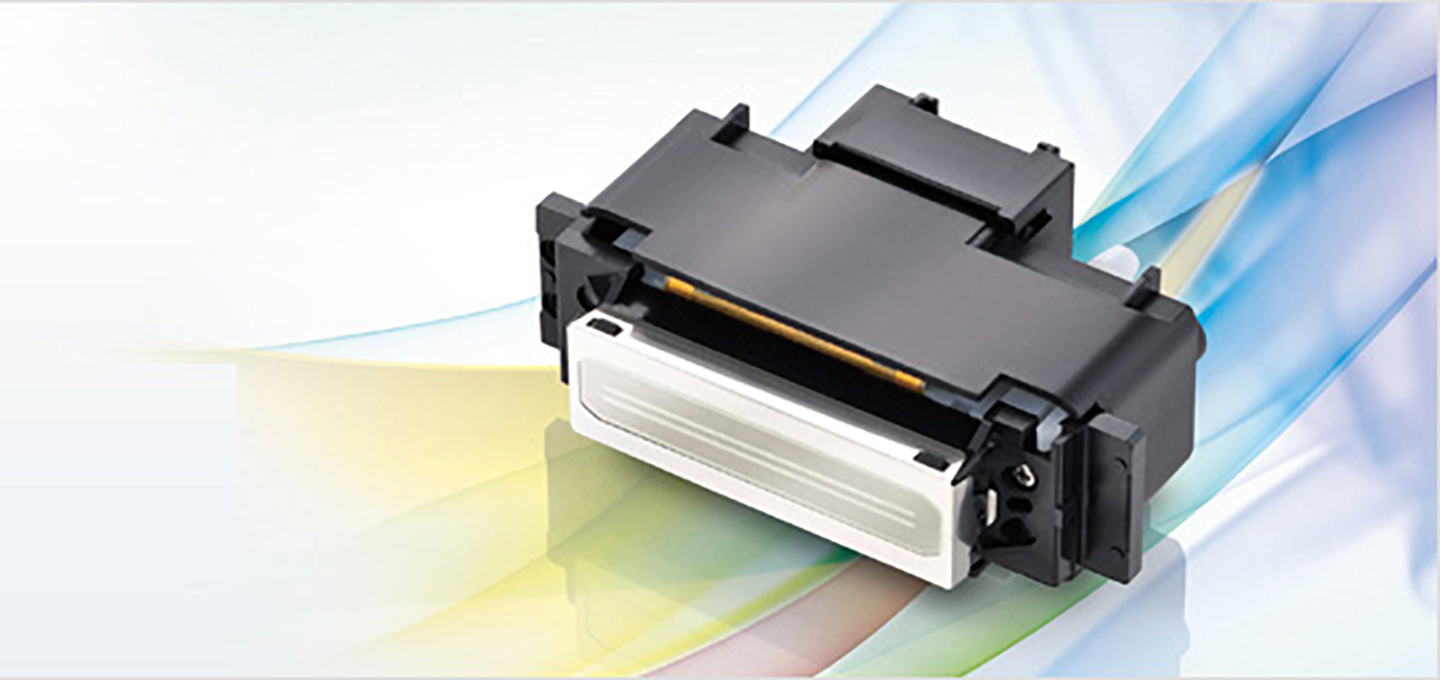

High-performance print heads

The RICOH Ri 1000x is equipped with genuine Ricoh print heads designed for speed, precision, and durability. The result is gorgeous, high-resolution print quality and minimised maintenance.

Printhead

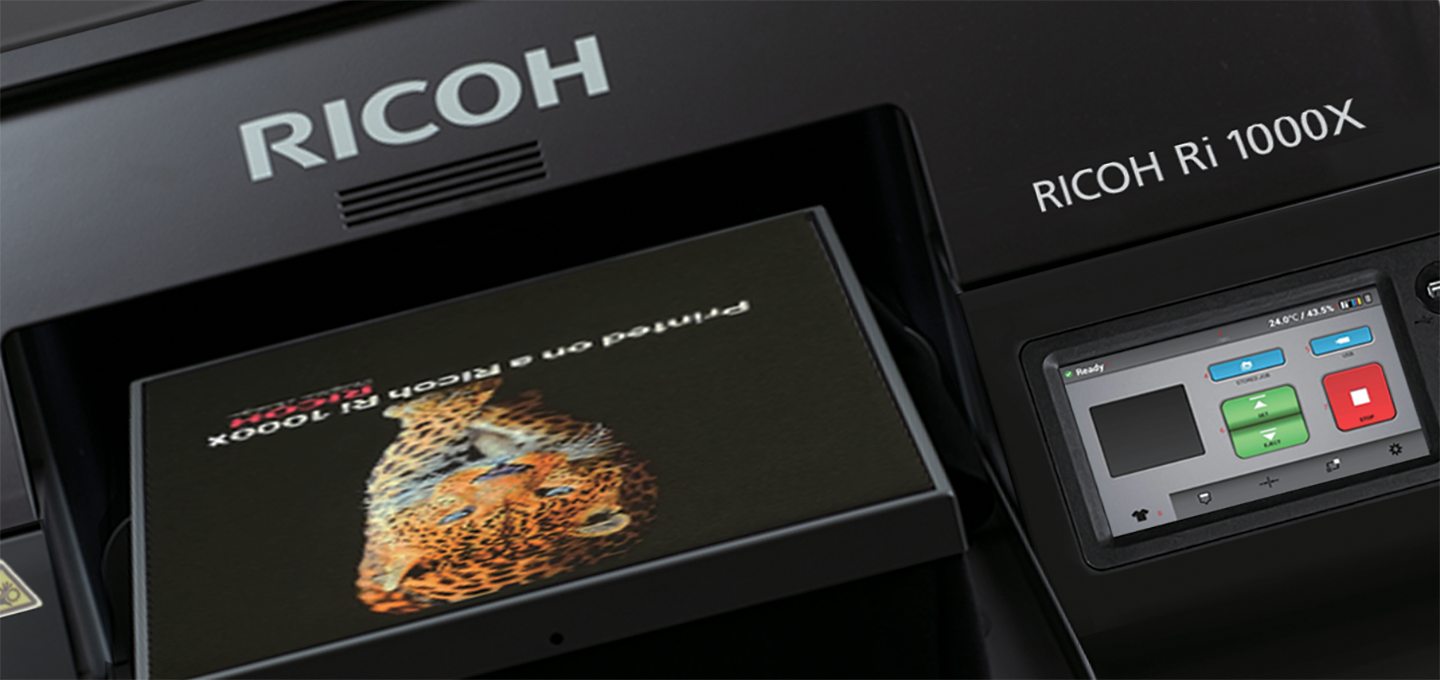

Interactive 7'' touchscreen with smart alerts

Large 7” touchscreen boasts a vibrant, full colour display with upgraded graphical interface, intuitive controls, and a built-in interactive guide that provides smart alerts and maintenance reminders.

Touchscreen

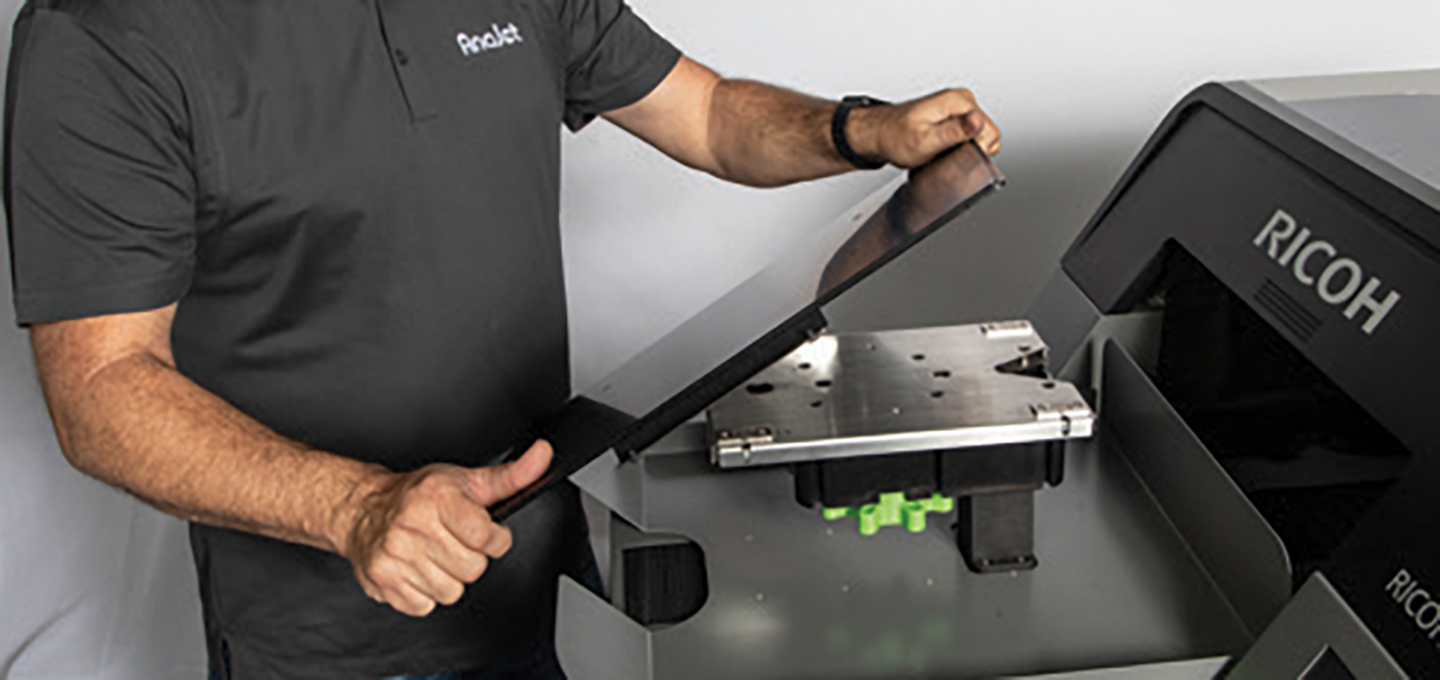

Easy table adjustments & quick-change platens

Quickly switch from printing on a thin garment to a thick garment, thanks to convenient optical sensor technology and precise table height adjustment. Dressable platens provide hassle-free loading and garment protection. Easily swap among different platen options for maximum versatility.

Platen

Sharp, vibrant images

Wow your customers with eyepopping prints. The RICOH Ri 1000x offers brighter, more accurate colours and higher image resolution up to 1200 x 1200 dpi.

Print of Tiger
Specifications
Explore the details that define this product's capabilities. See the specs that matter most to you.
GENERAL
Printer type

Direct to Garment printer

Technology

Ricoh piezo-electric drop on demand inkjet system

Head type

RICOH print head

Print speed

27 seconds

Resolution

1,200 x 1,200 dpi

Printable area

406 x 498 mm

Humidity

45 - 80%

Operating temperature

15 - 32°C

Dimensions: W x D x H

862 x 1,325 x 480 mm

Weight

110 kg

Power source

220 - 240 V, 50/60 Hz

Power consumption

100 W

INK
Ink type

Water-based pigment ink

Ink configuration

Cyan, Magenta, Yellow, Black, White

SYSTEM REQUIREMENTS
Operating system

Windows 10

Network interface

Ethernet 10Base-T/100Base-Tx/1000BASE-T, USB flash drive

CPU

2 GHz

Memory

4 GB

HDD

2 GB
